URINALYSIS

Squamous Epithelial Cells

Transtional Cell.jpg — Transitional Epithelial Cells (ref)

Renal Tubular Epithelial Cells (ref)

Hyaline Cast (made of Tamm-Horsfall mucoprotein, secreted by tubules) (ref)

Red Blood Cells (RBC)

White Blood Cells (WBC)

Dysmorphic RBC

RBC Cast — RBC Cast (ref)

WBC Cast.jpg — White Blood Cell Cast (ref)

White Blood Cell Cast

Broad/Waxy Cast

Dark Granular/”Muddy Brown Casts”

Fatty Oval Body — Fatty Oval Body (under polarized light on right) (ref)

Urine1 — Dark red/brown urine (ref): seen with hemoglobinuria, hematuria, myoglobinuria, porphyria, bile fragments, food/drugs

KIDNEY PATHOLOGY

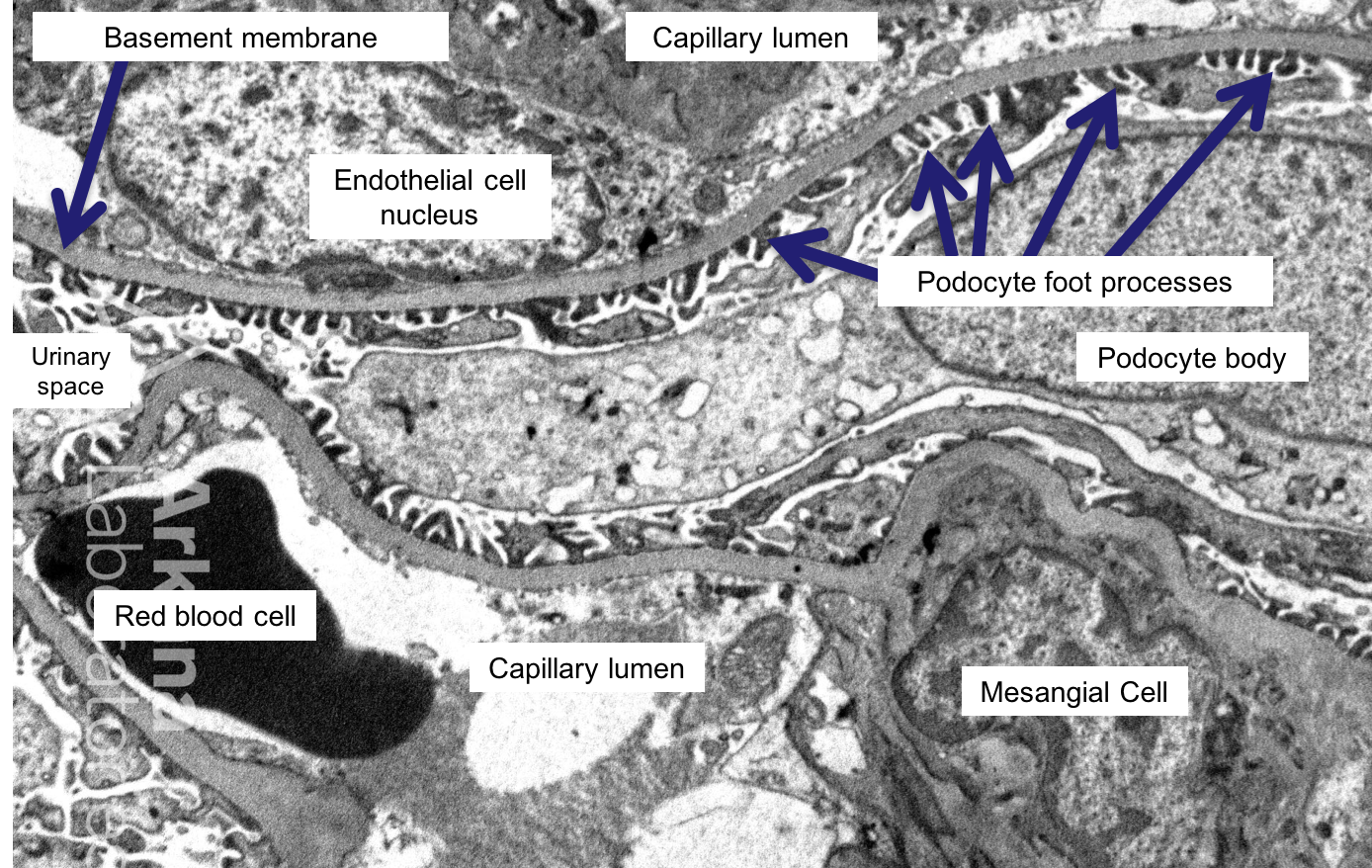

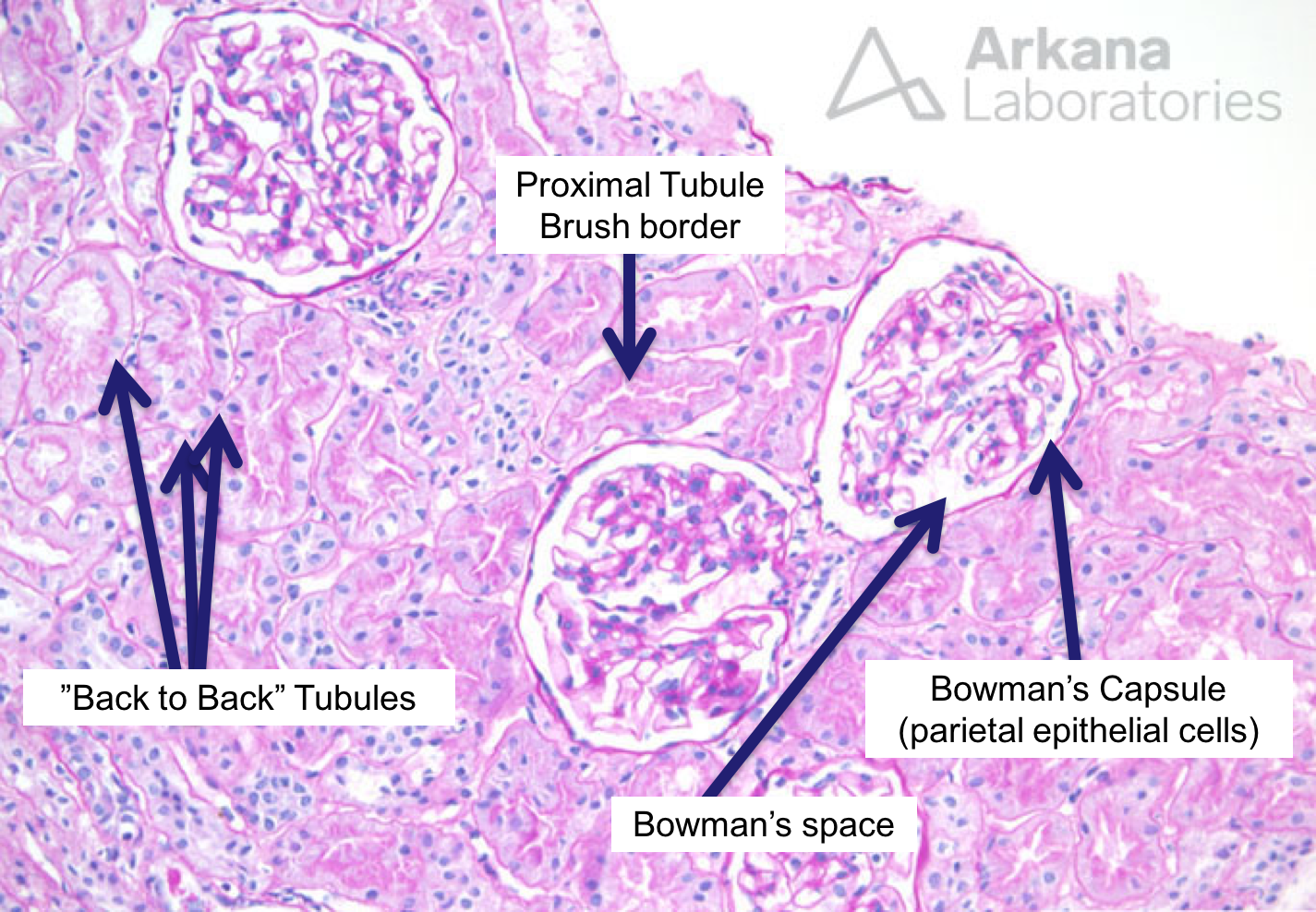

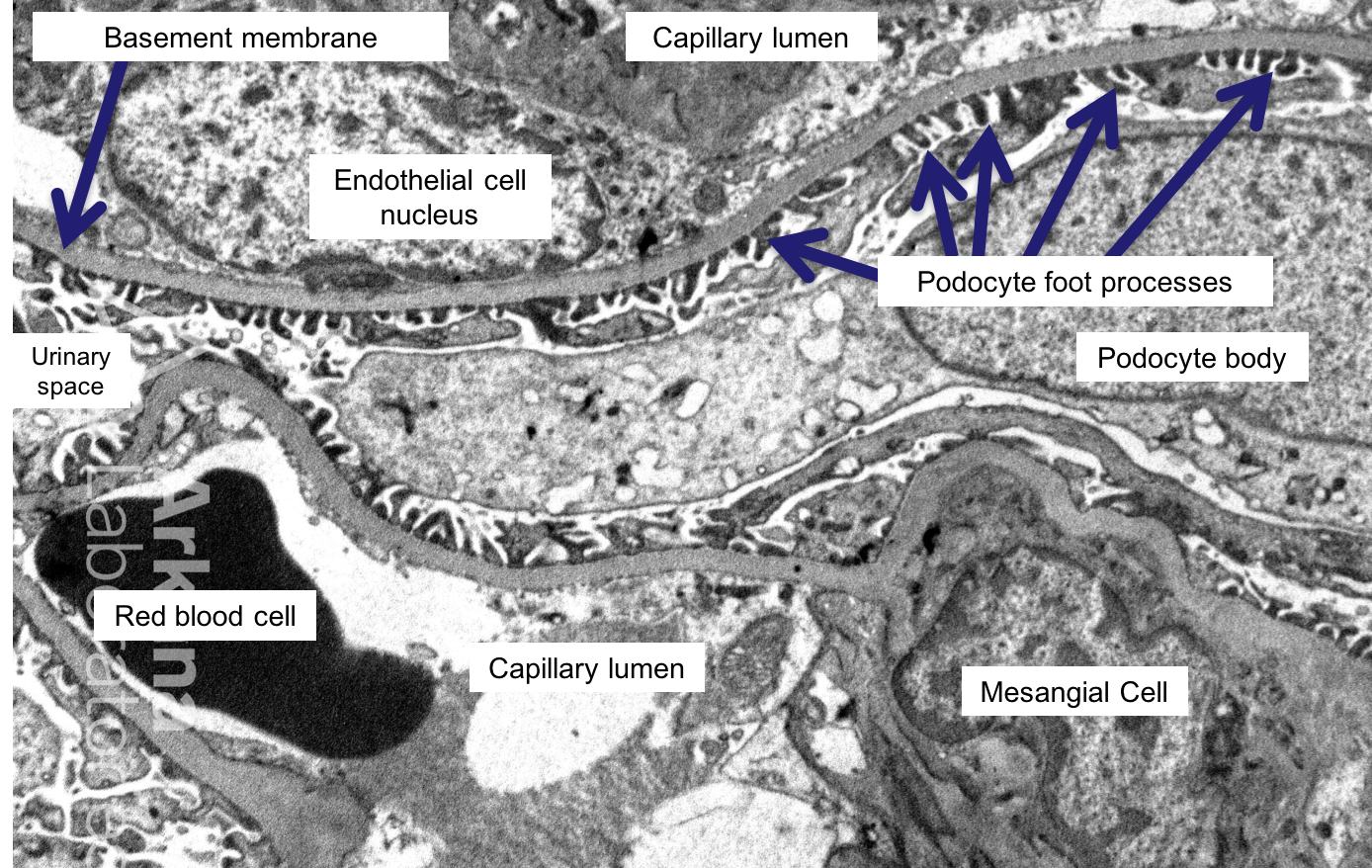

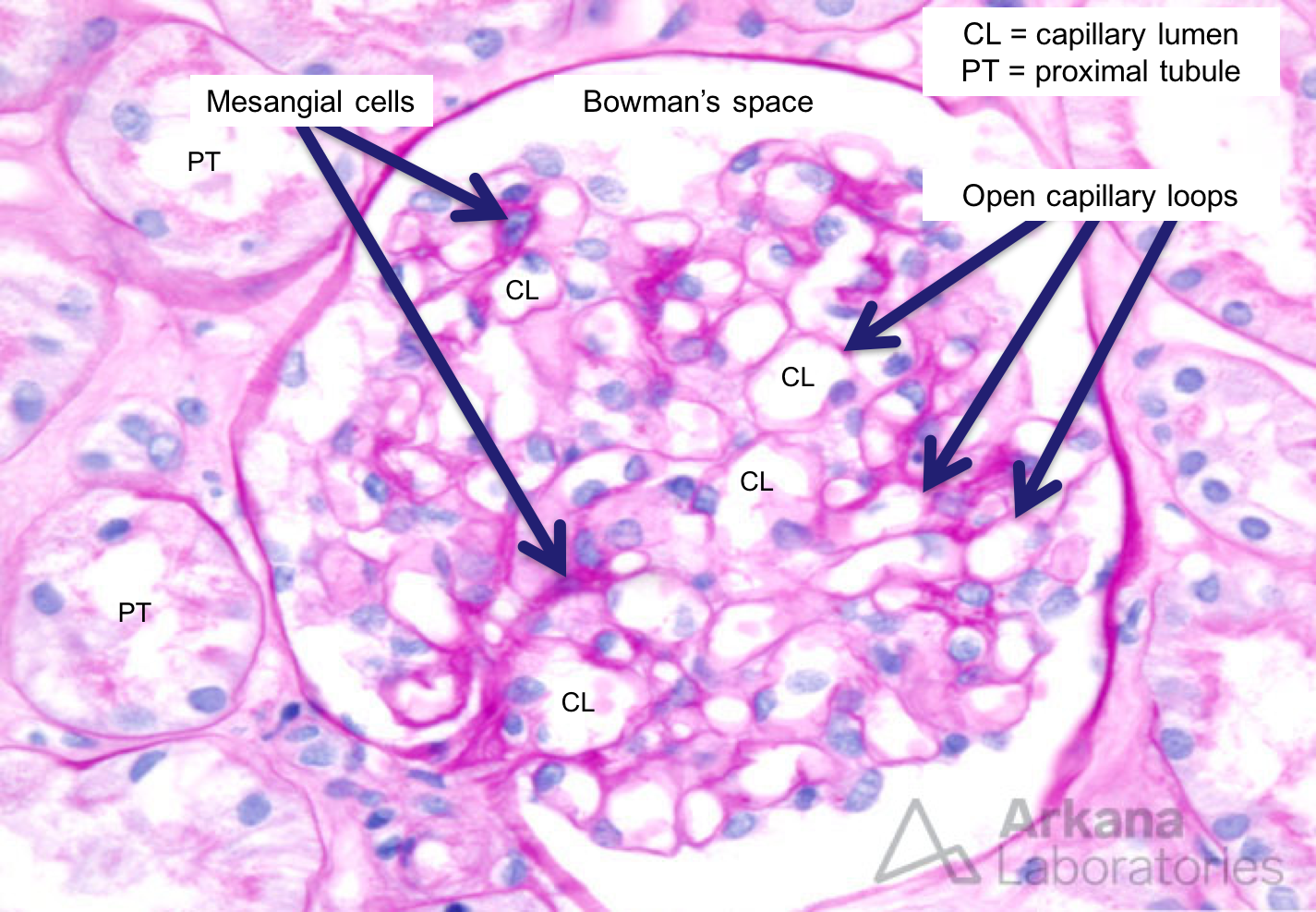

Normal Kidney

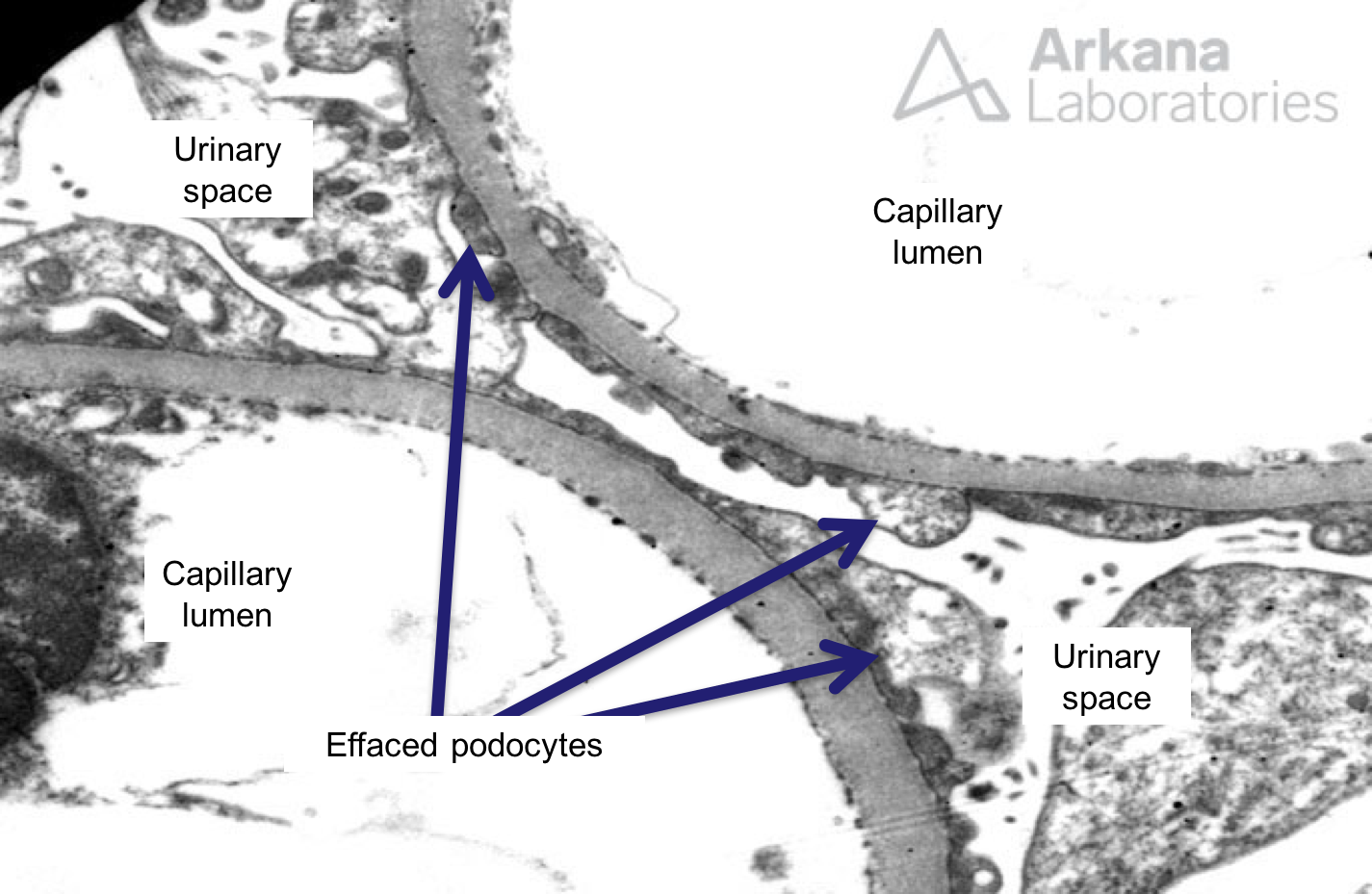

Minimal Change Disease

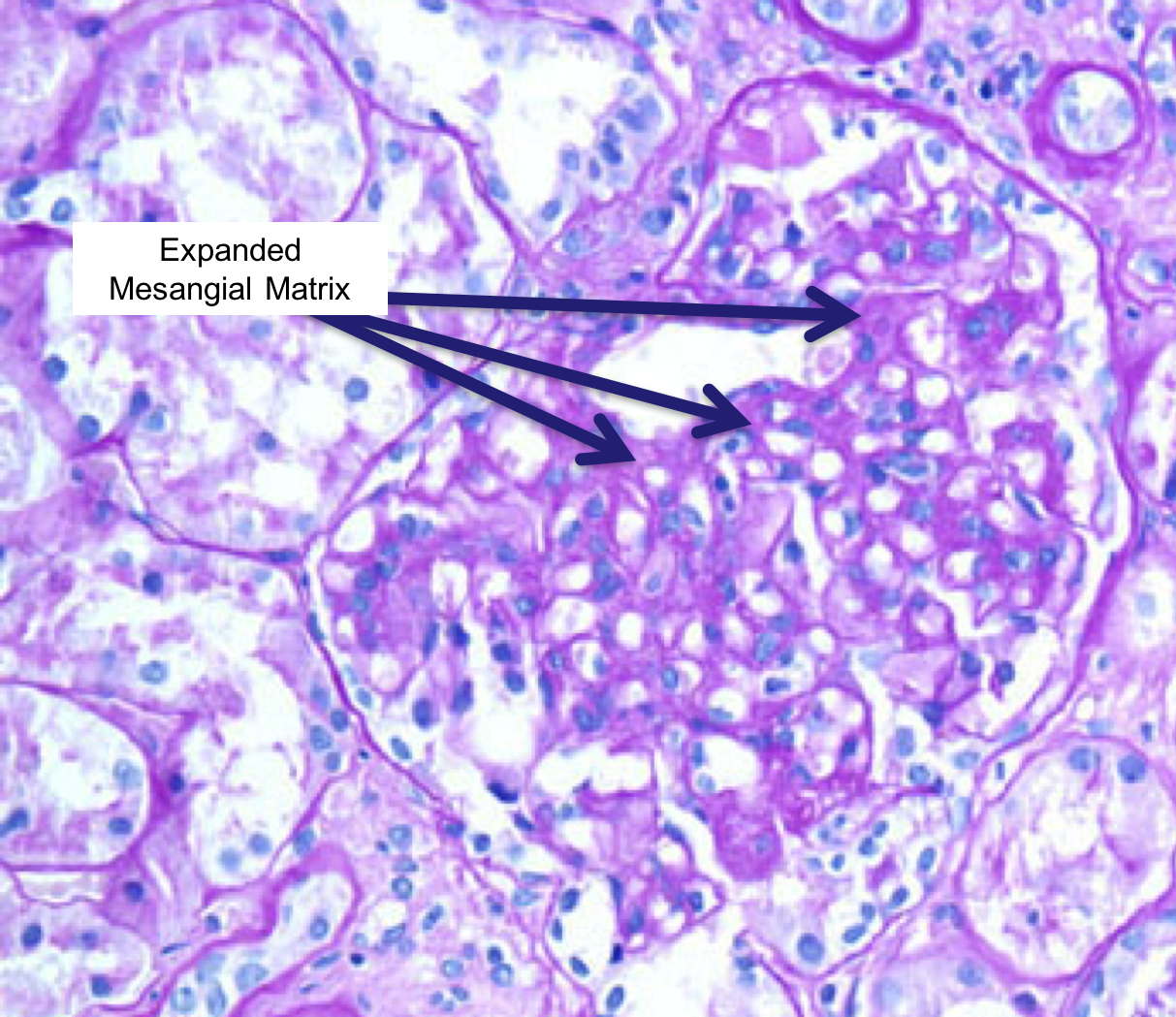

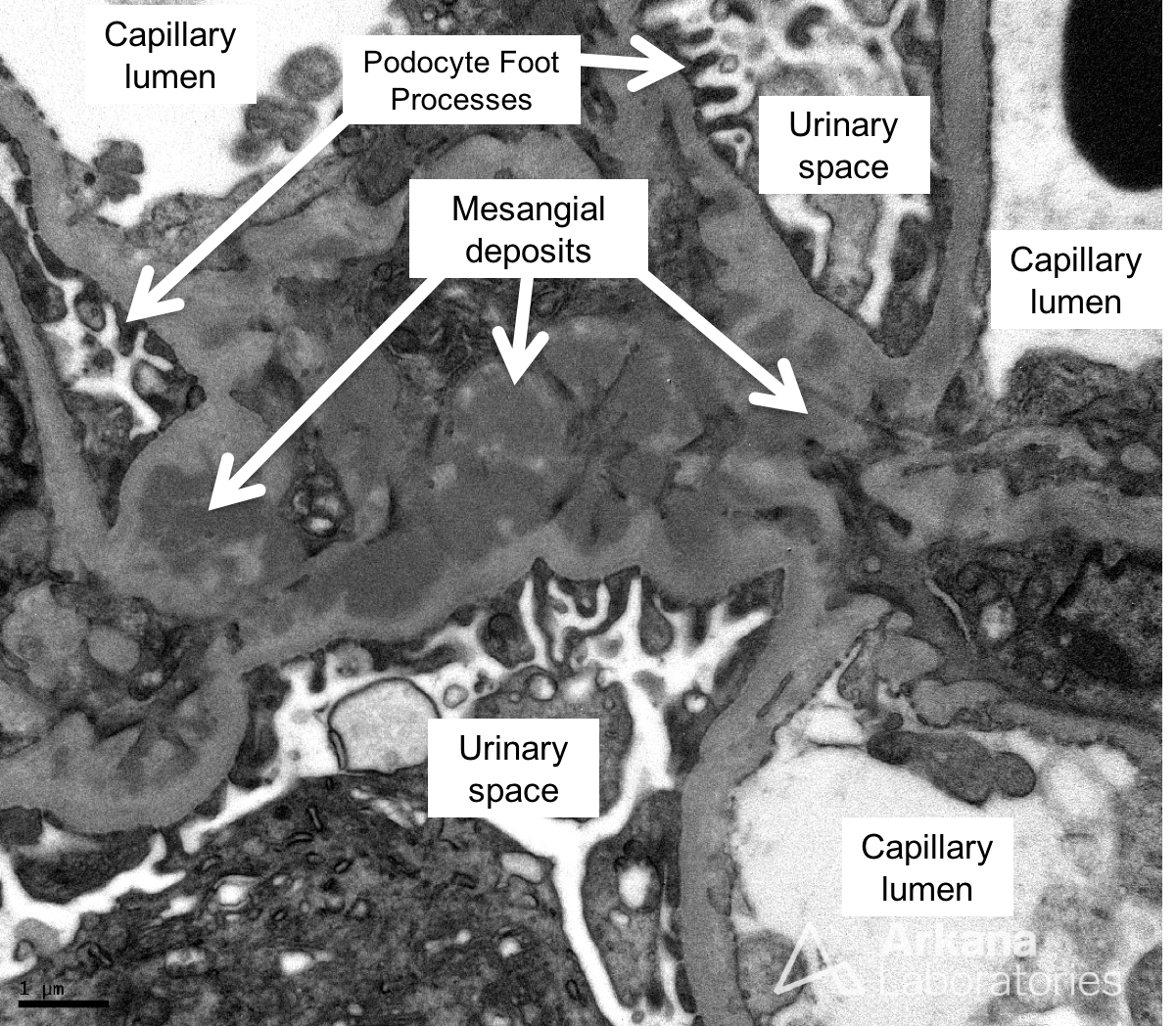

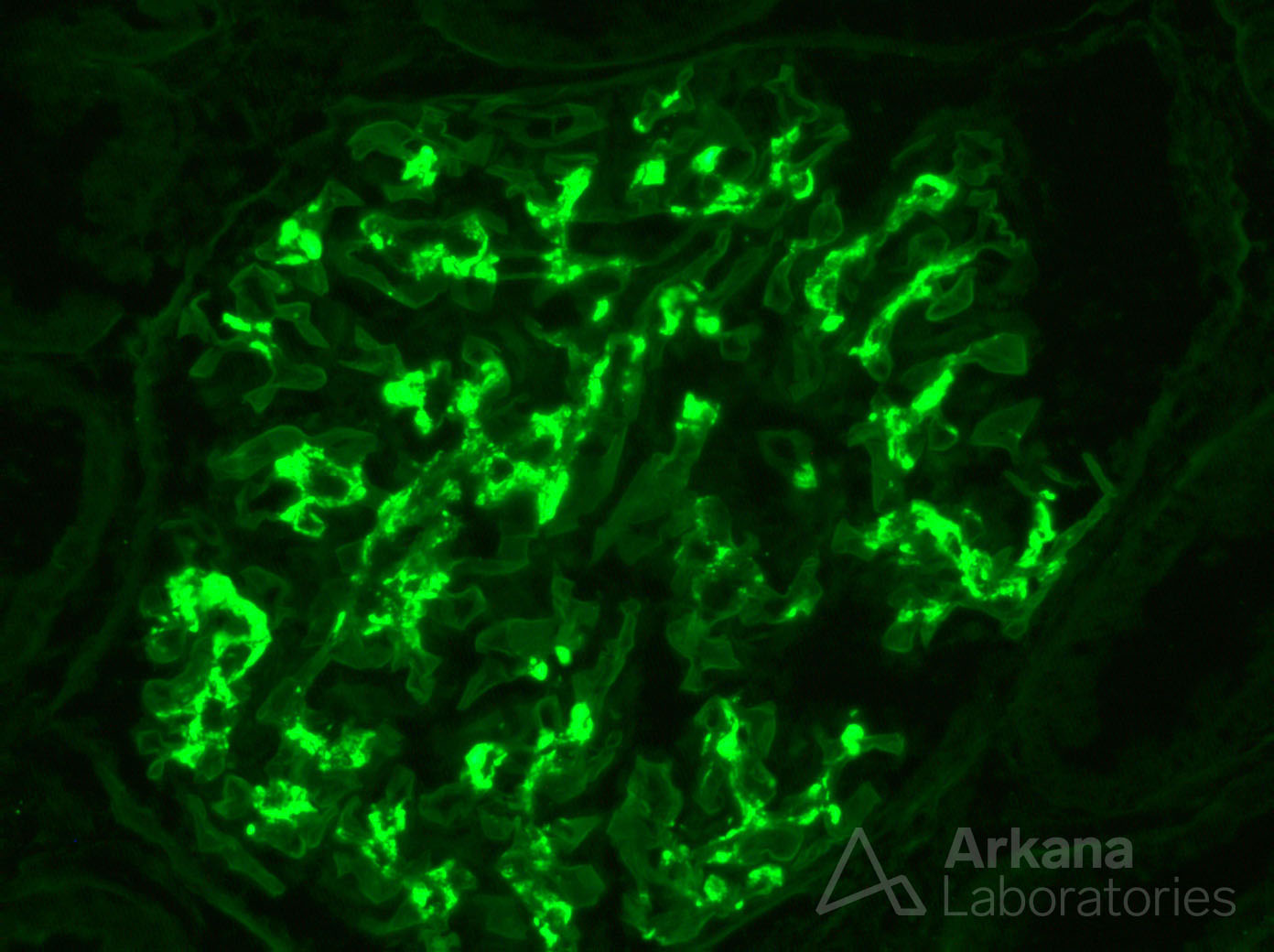

IgA Nephropathy

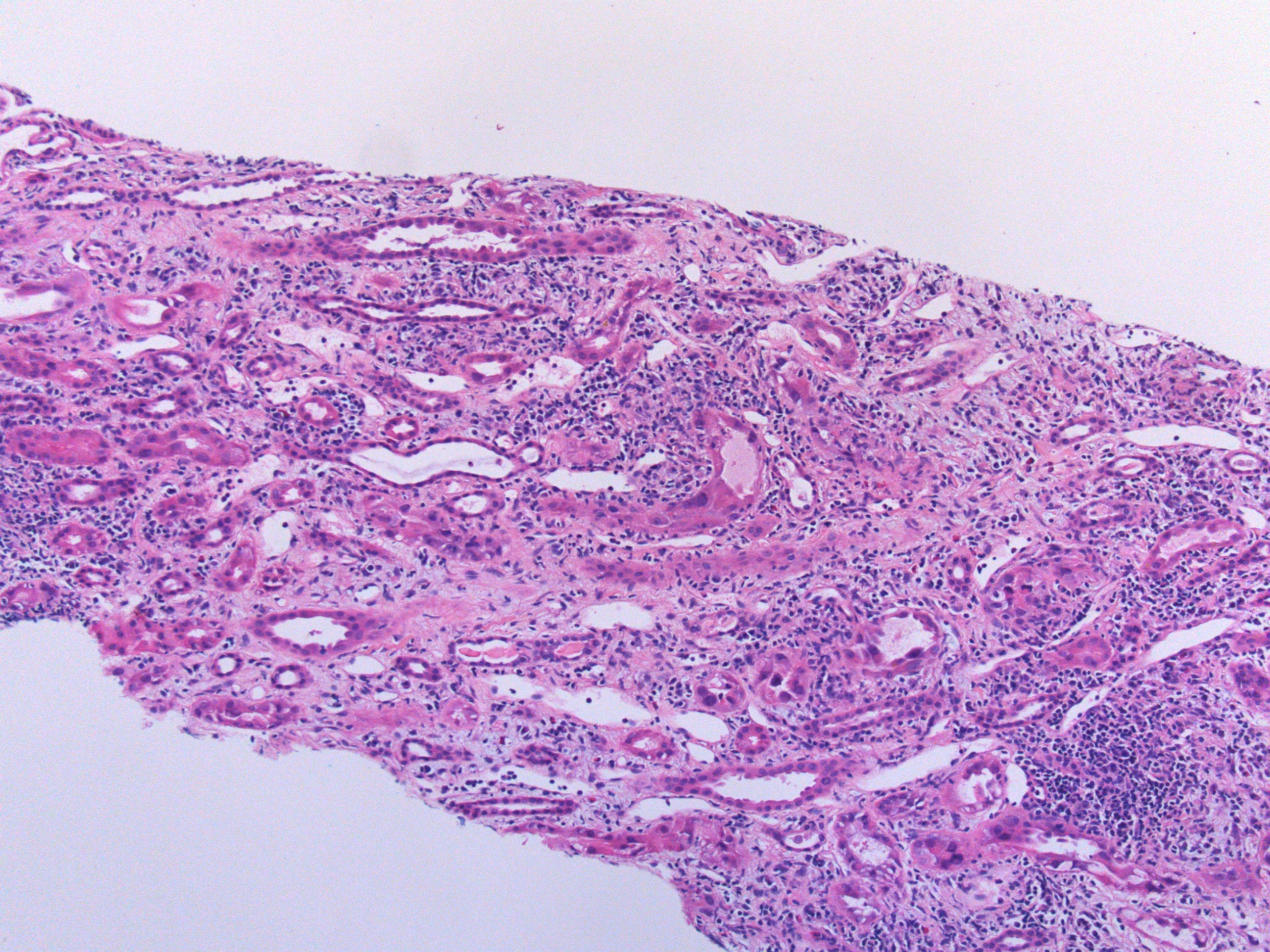

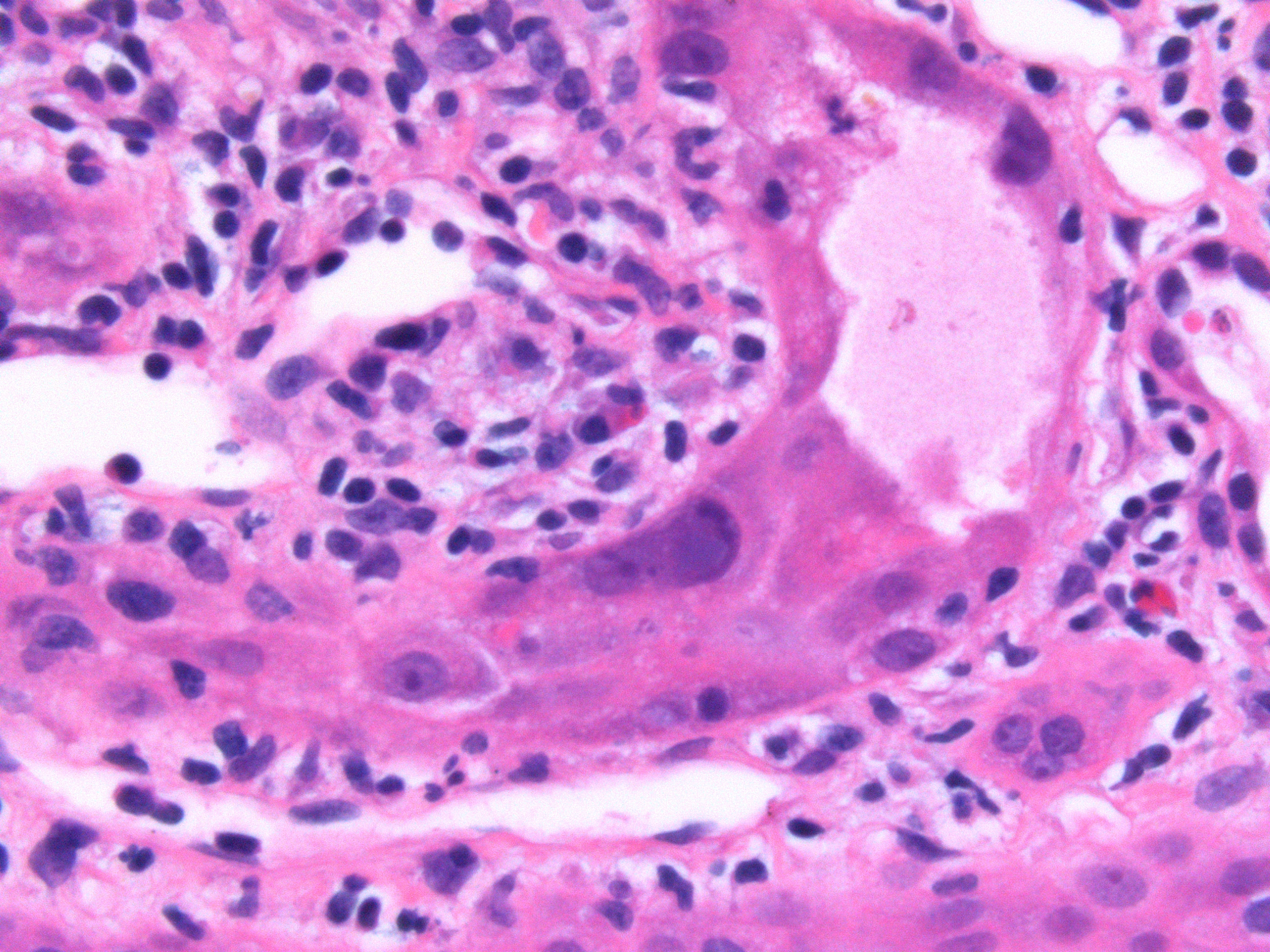

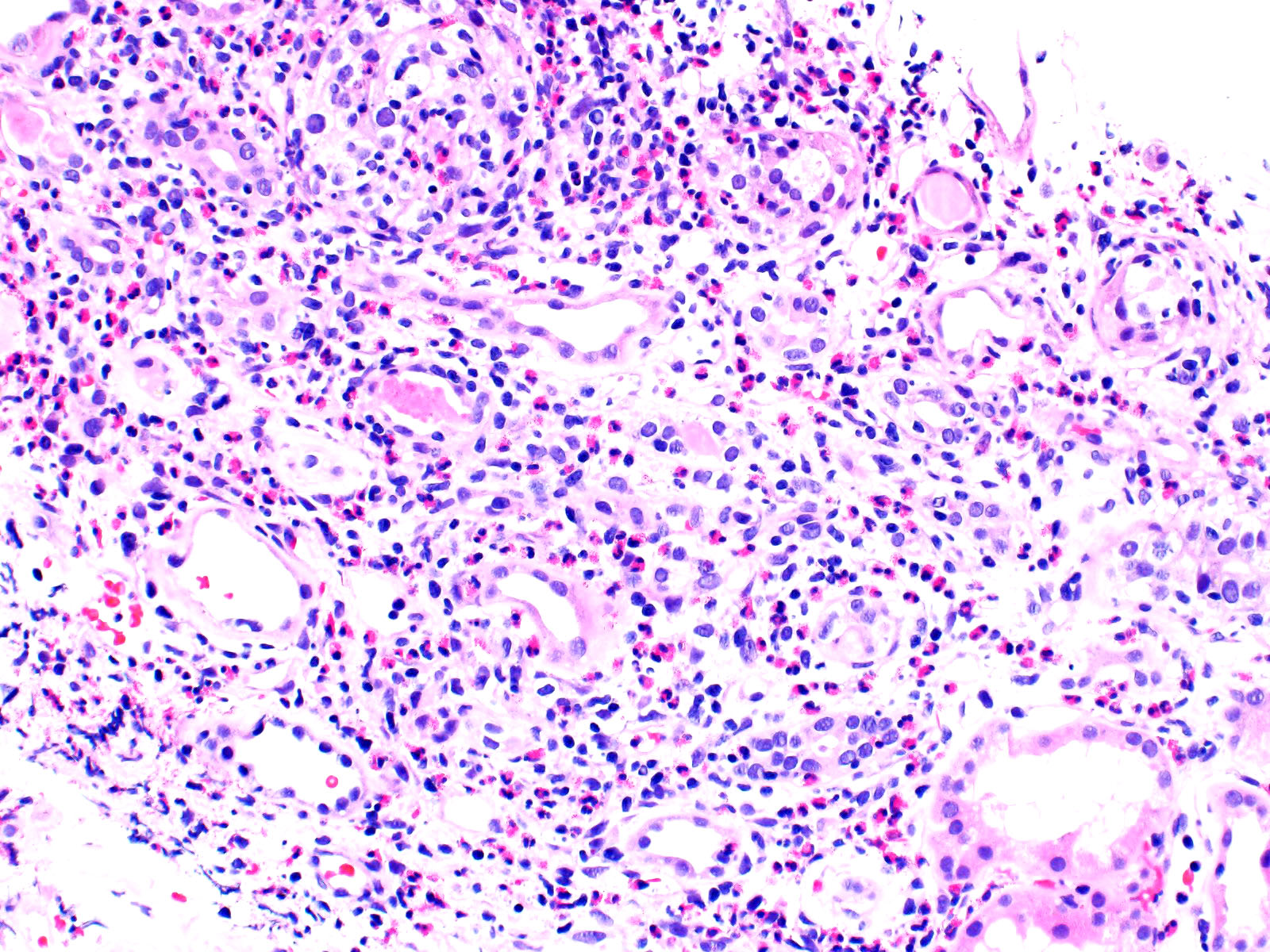

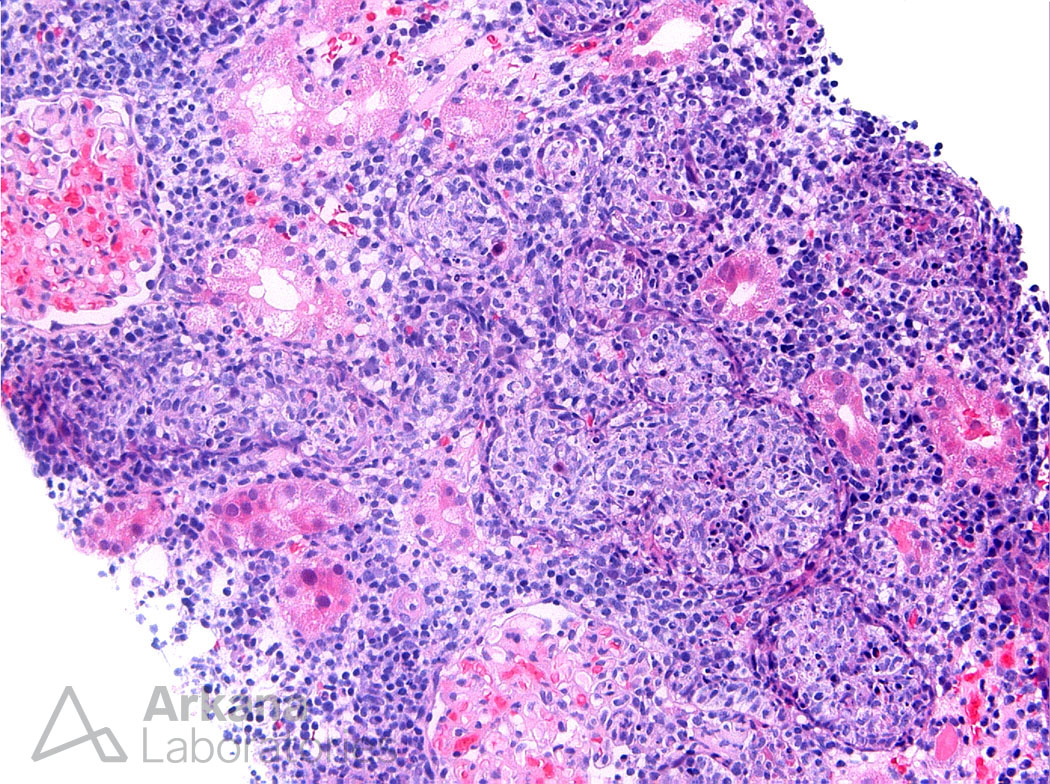

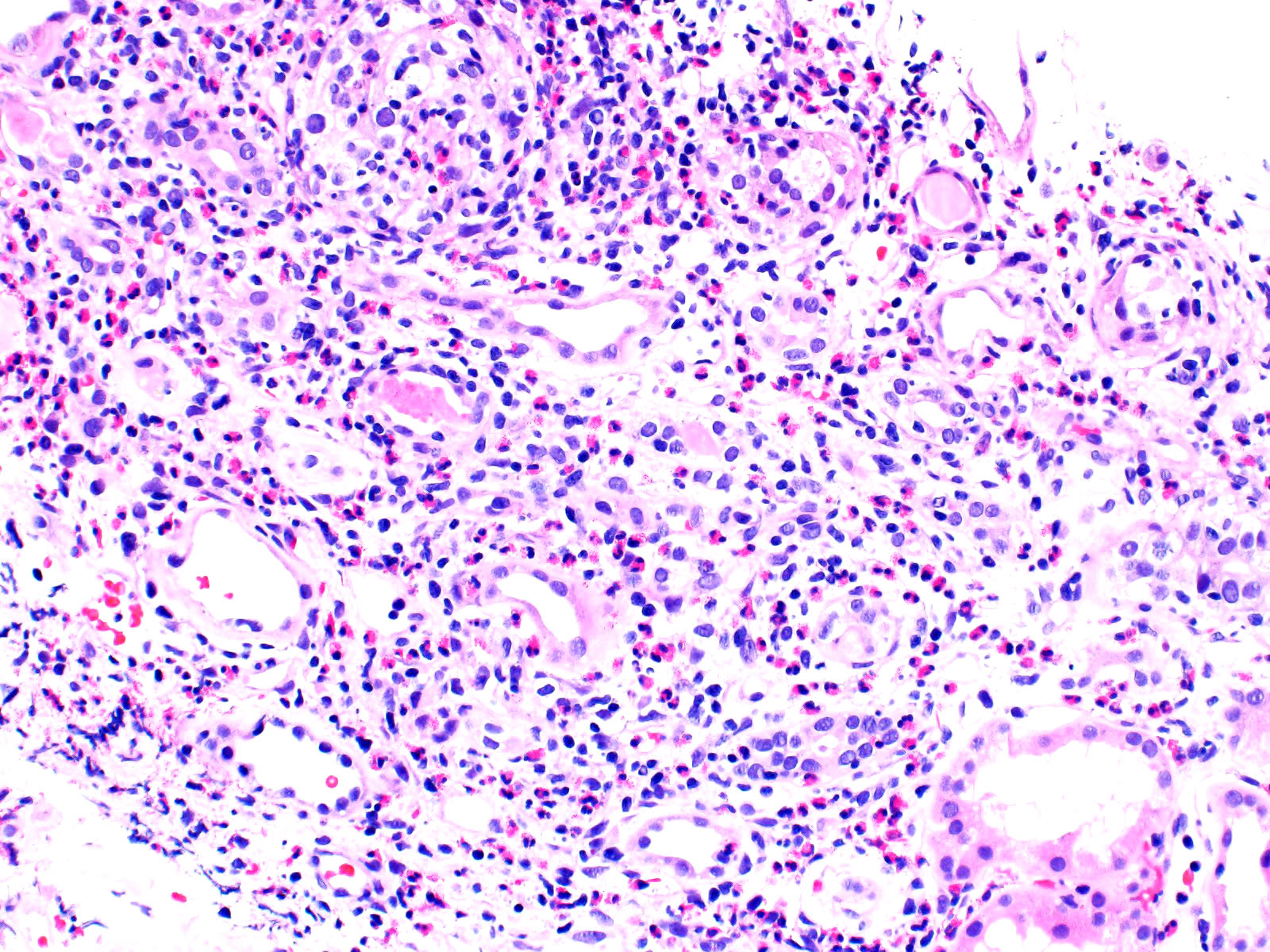

Acute Interstitial Nephritis

AIN Labeled.png

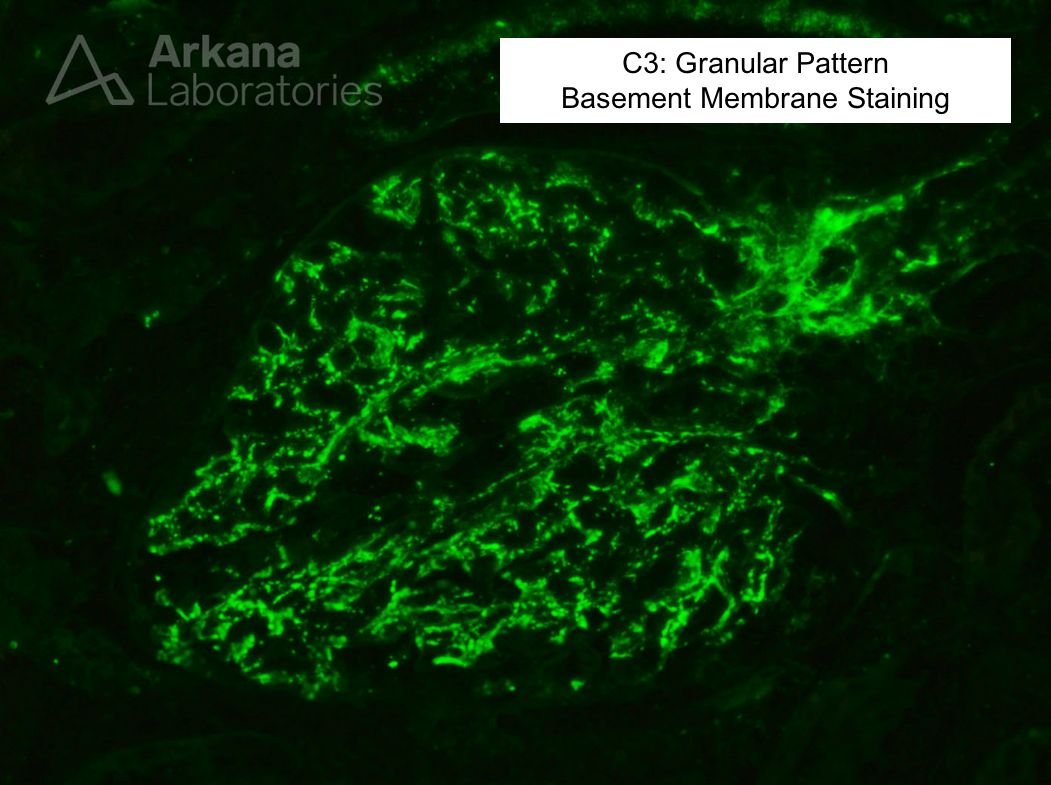

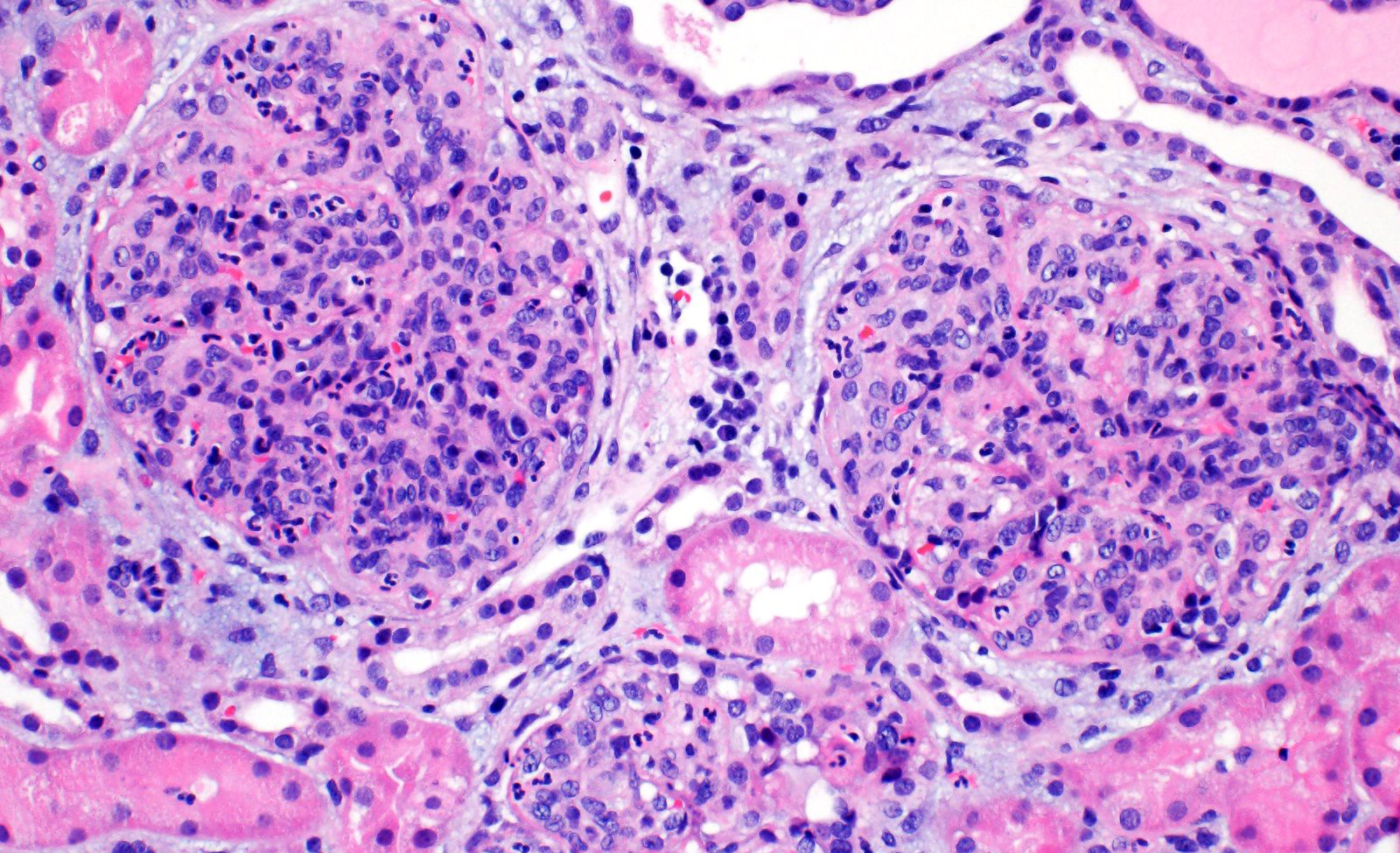

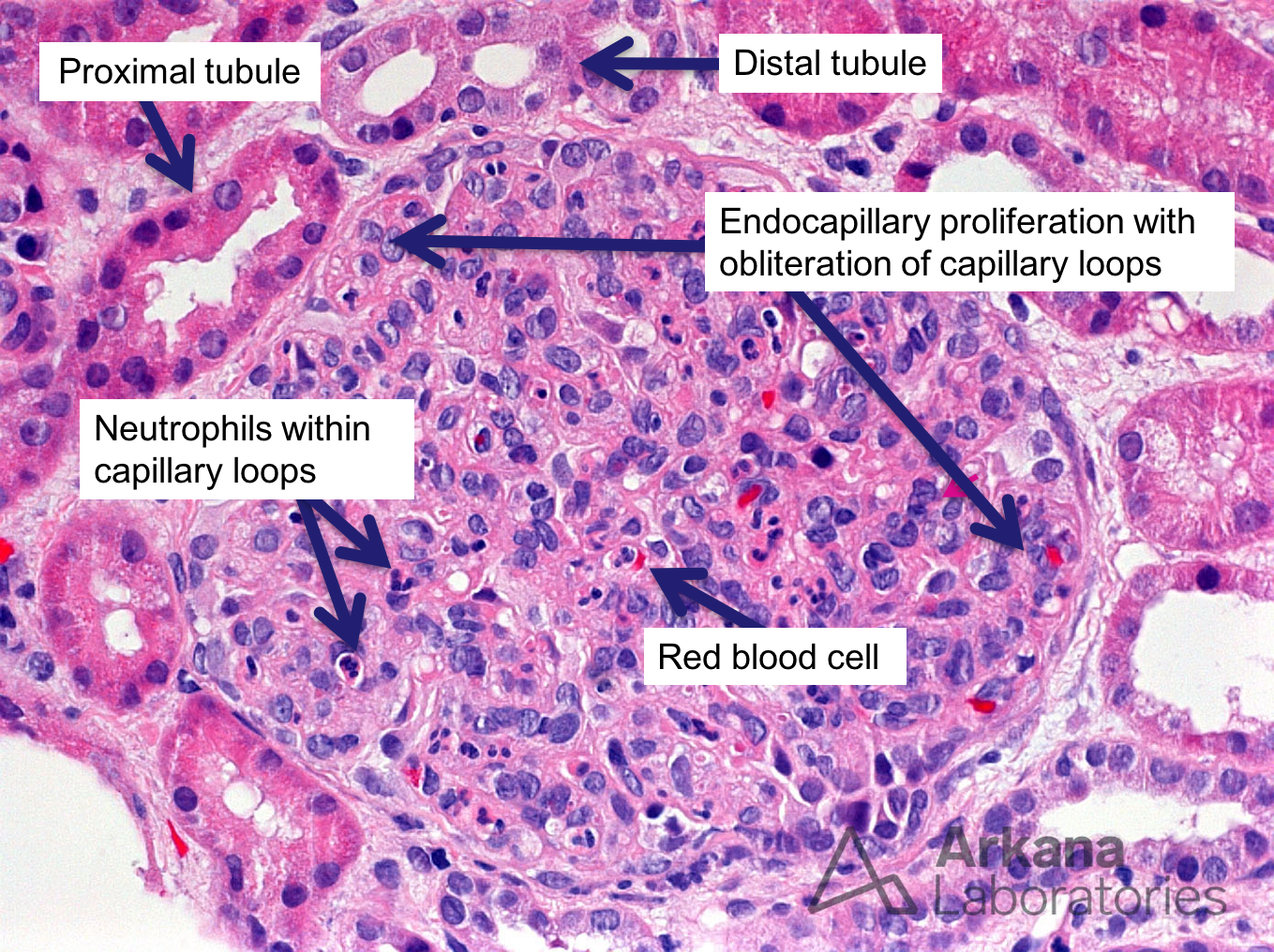

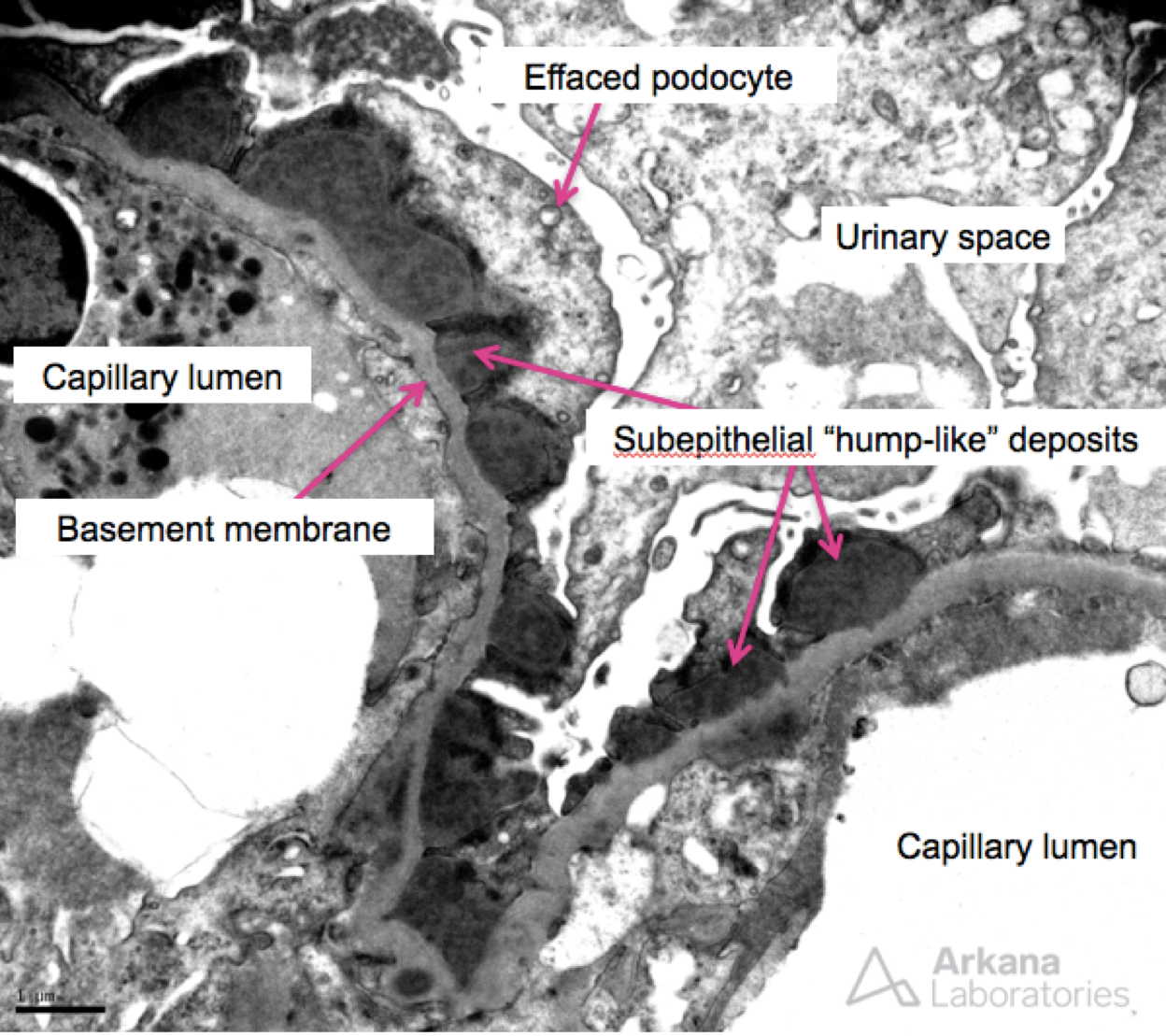

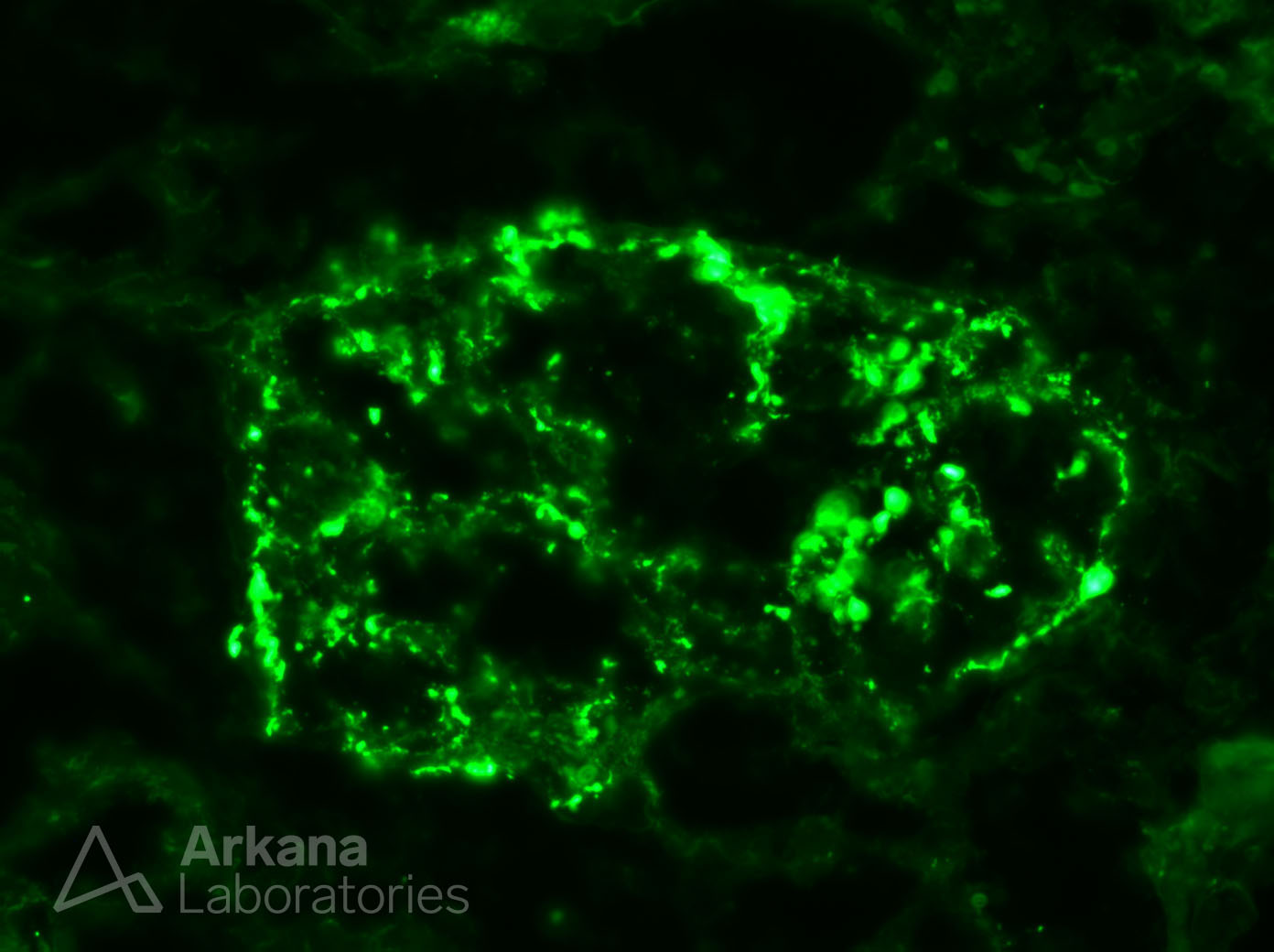

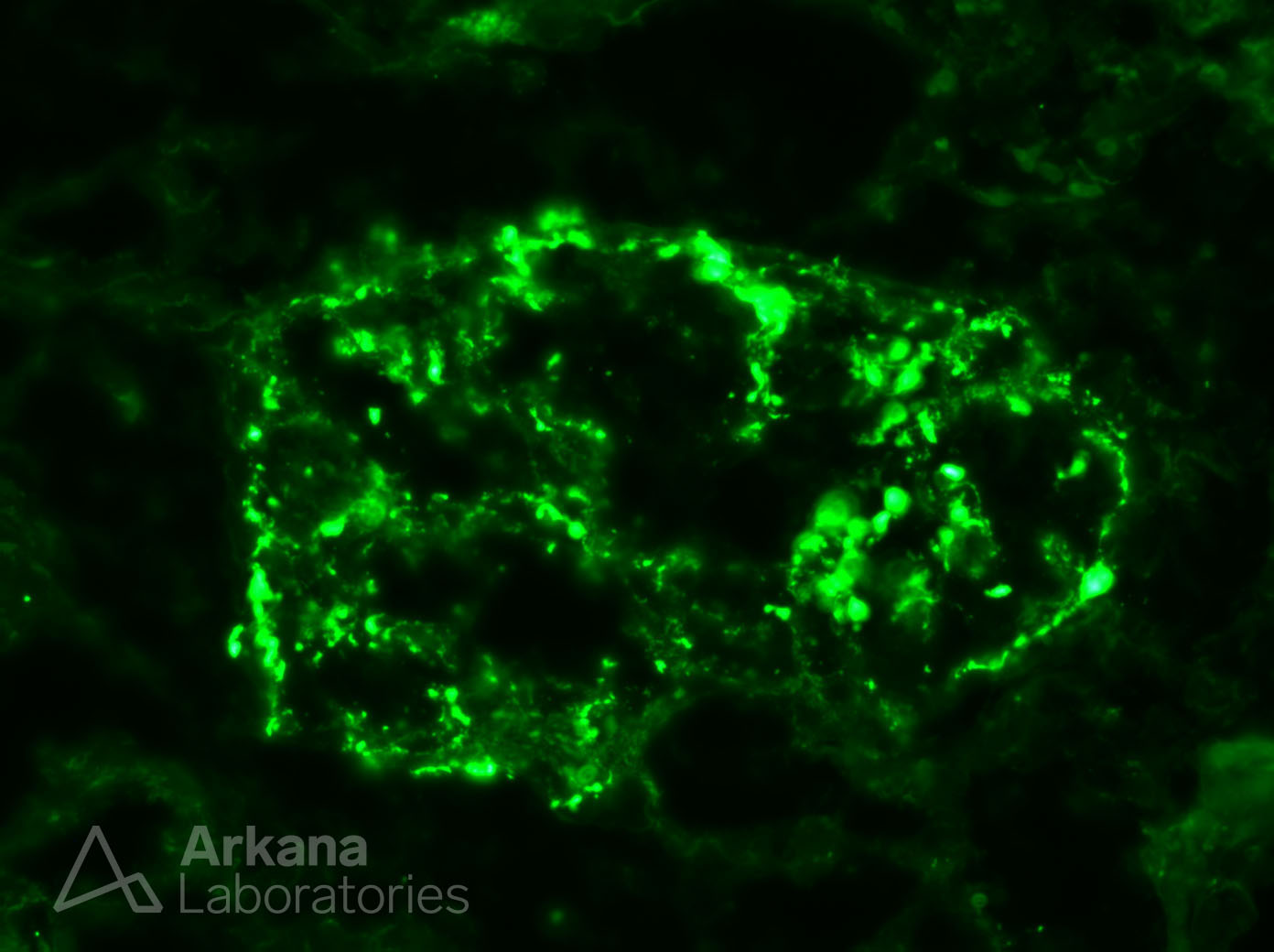

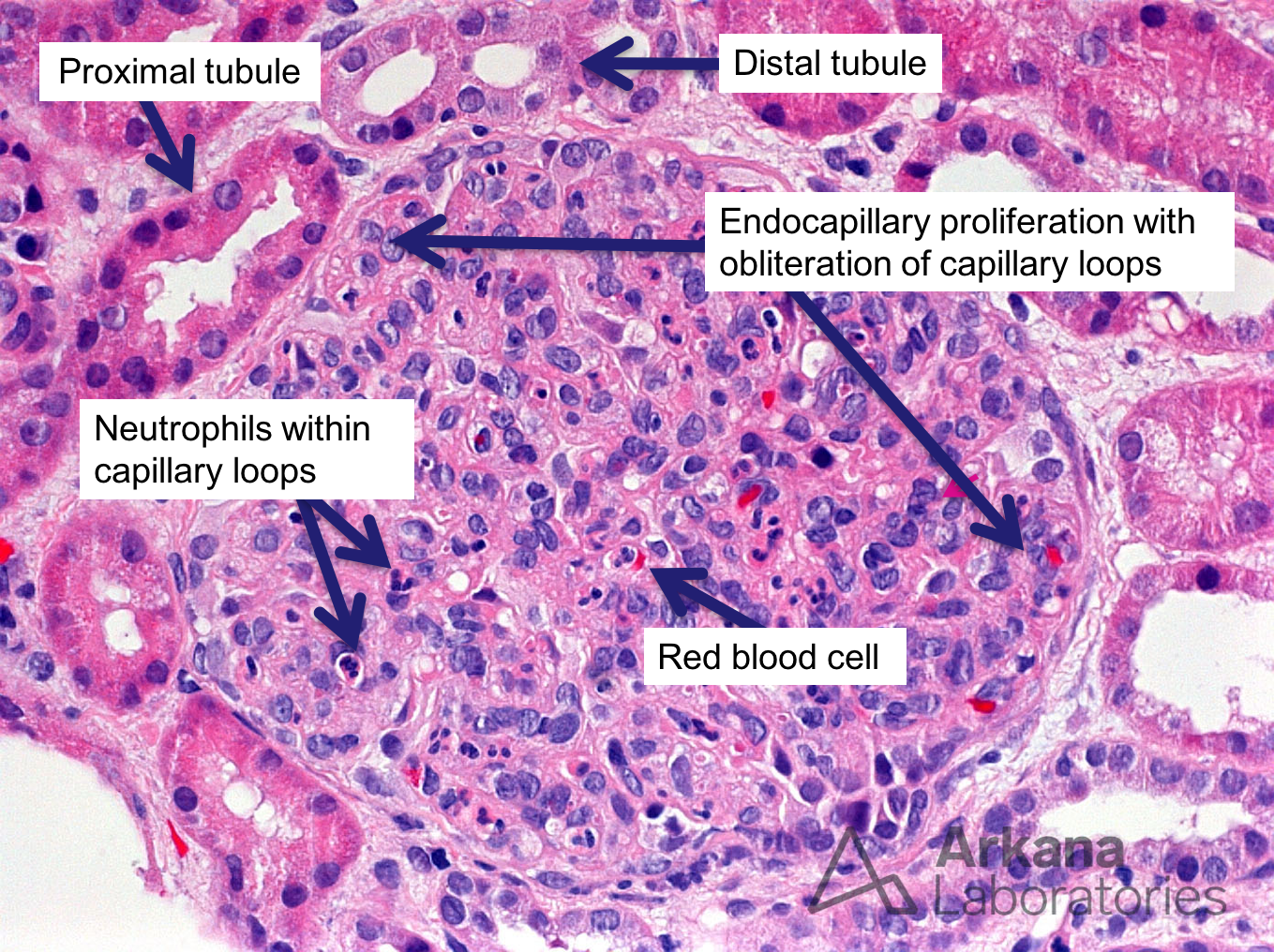

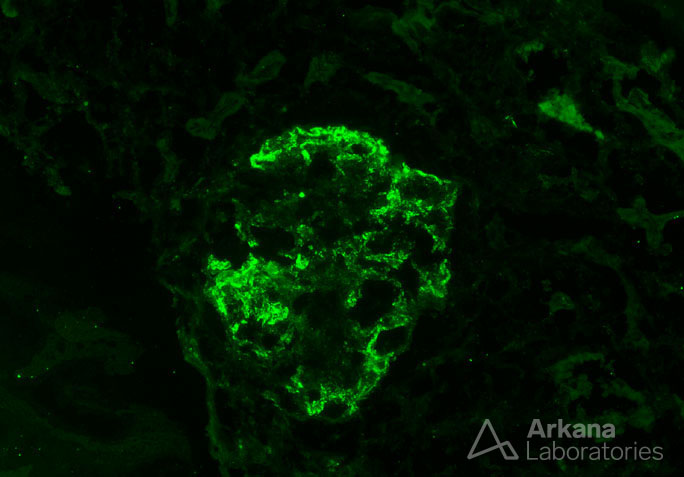

Post-Infectious Glomerulonephritis

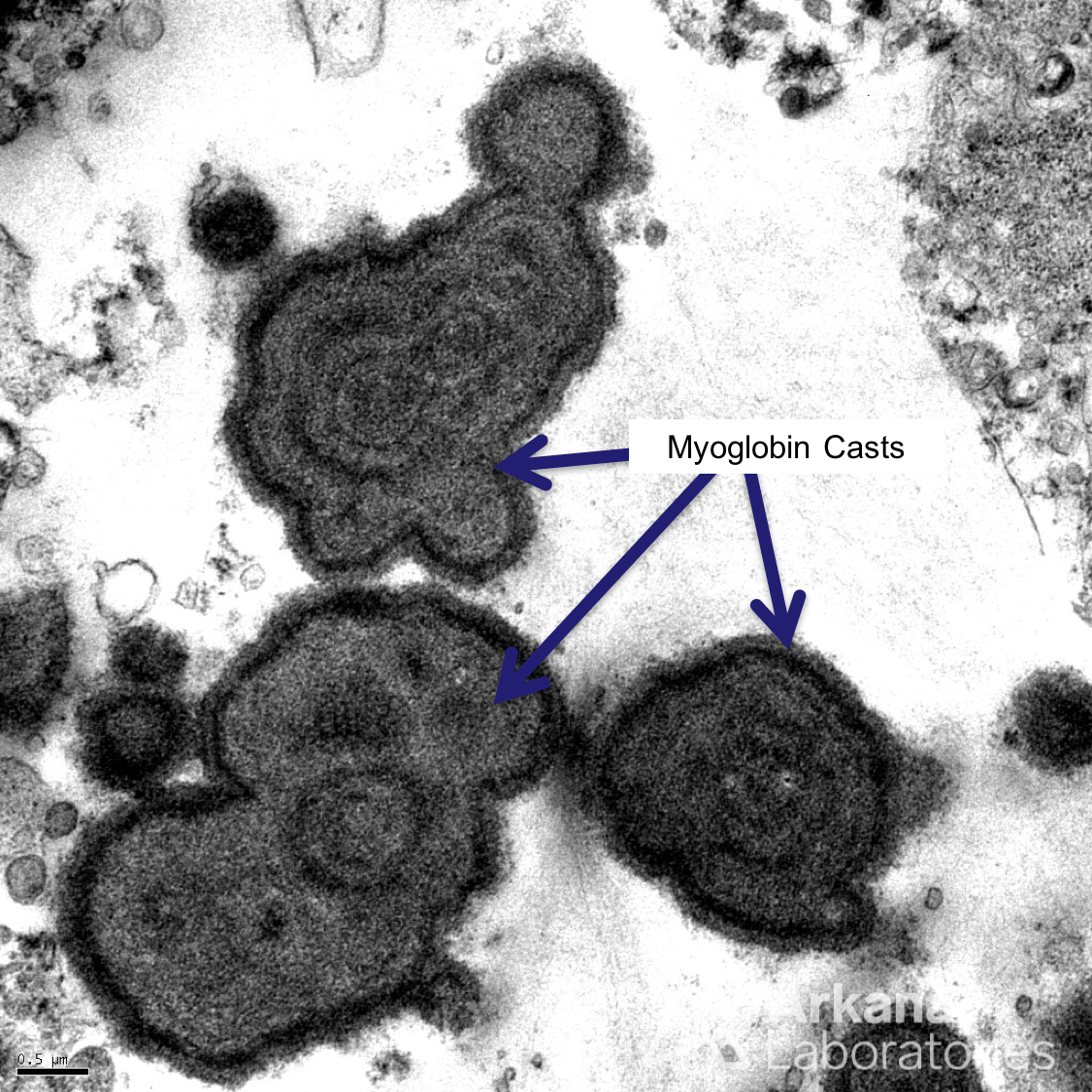

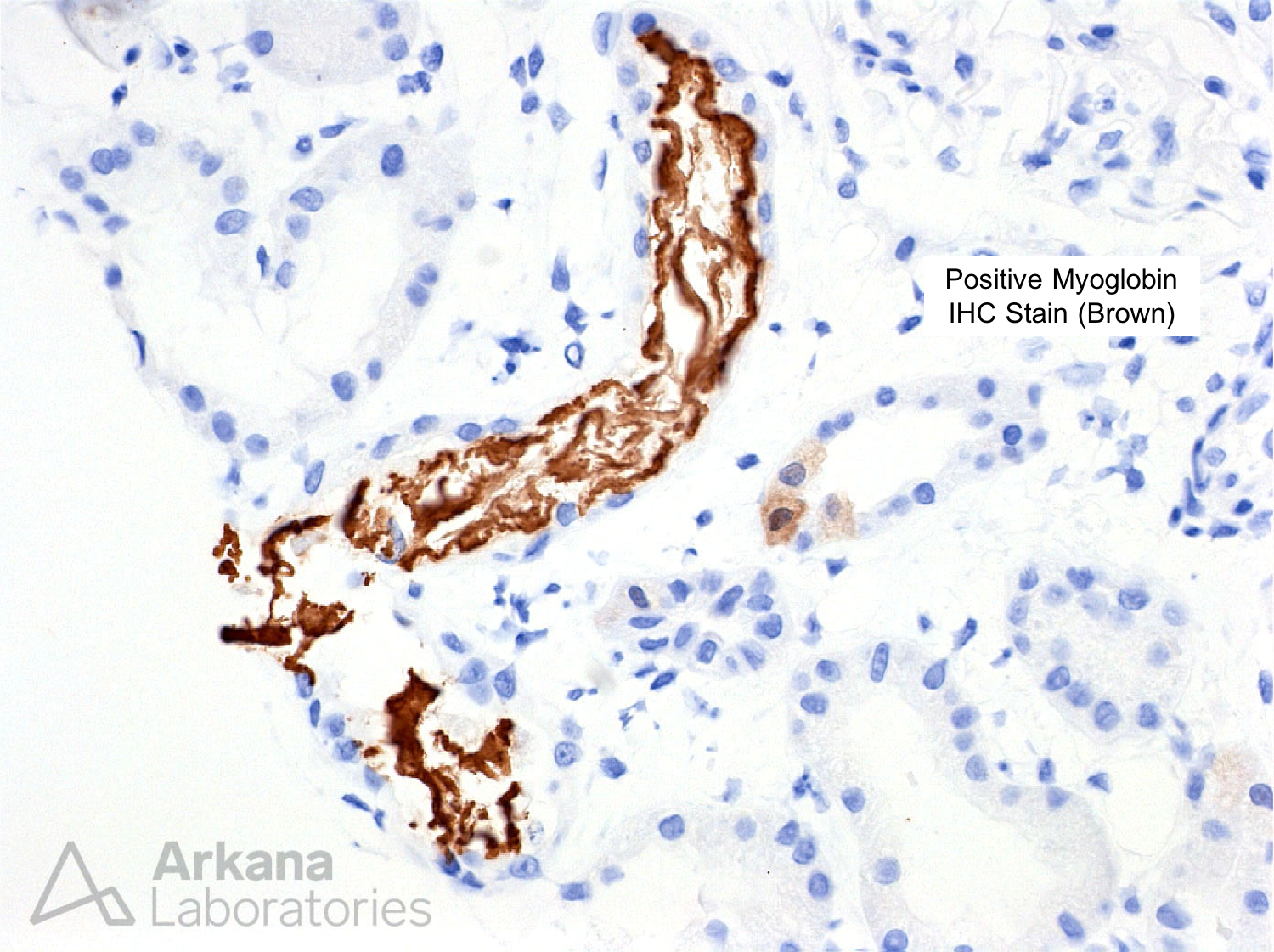

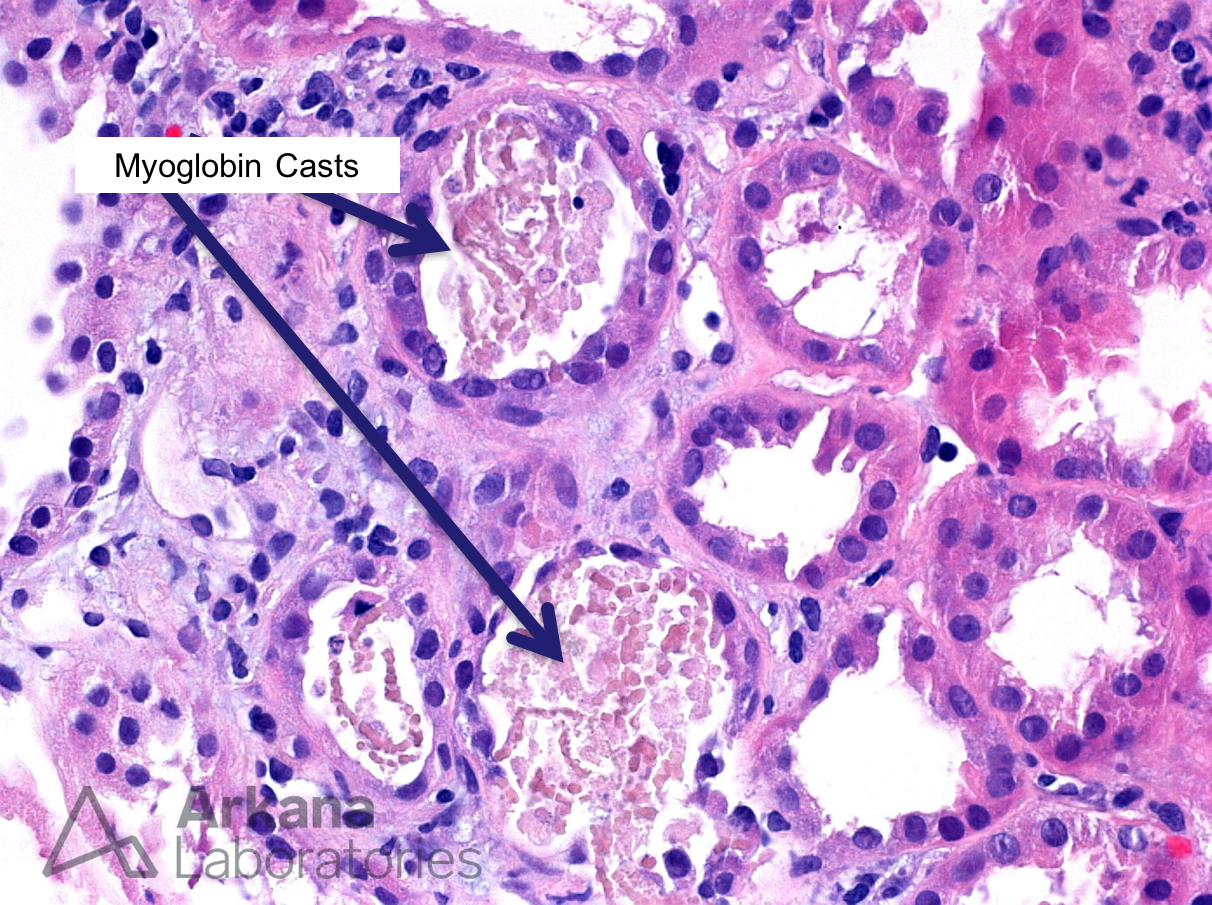

Rhabdomyolysis

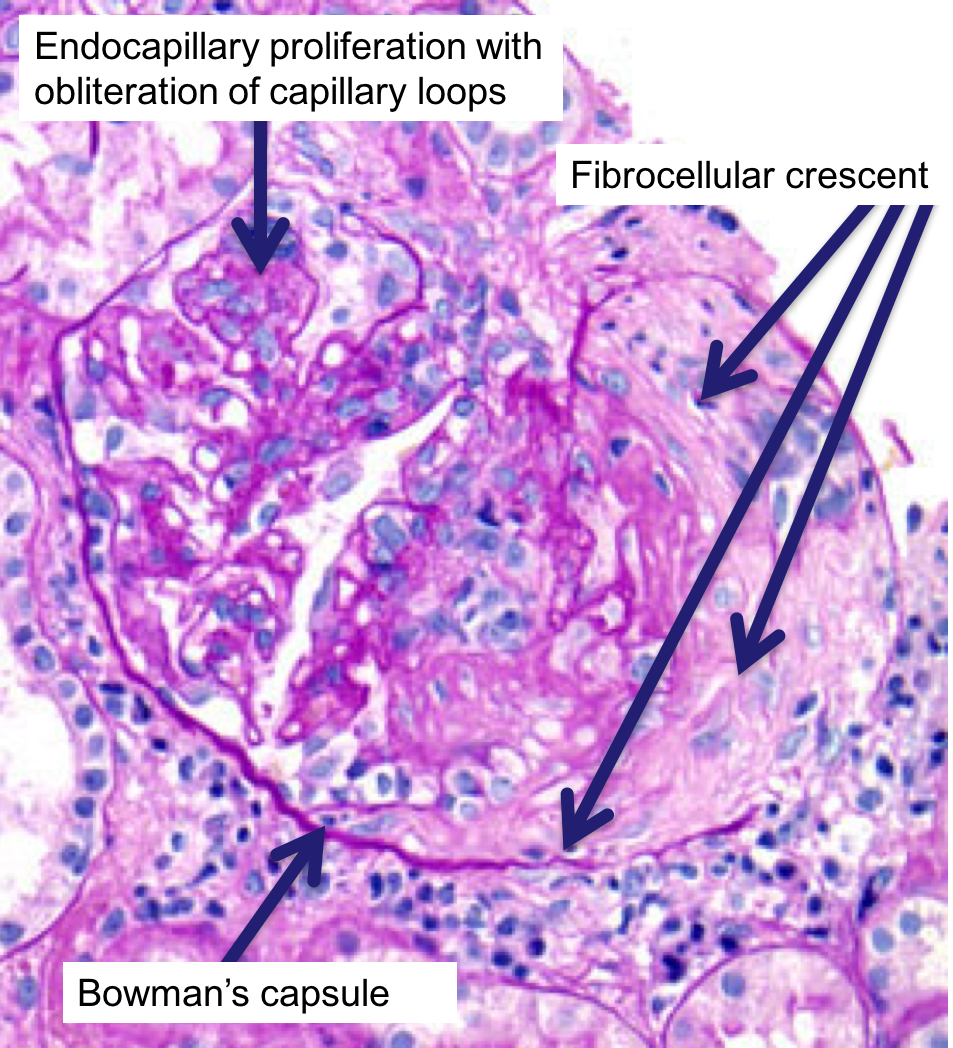

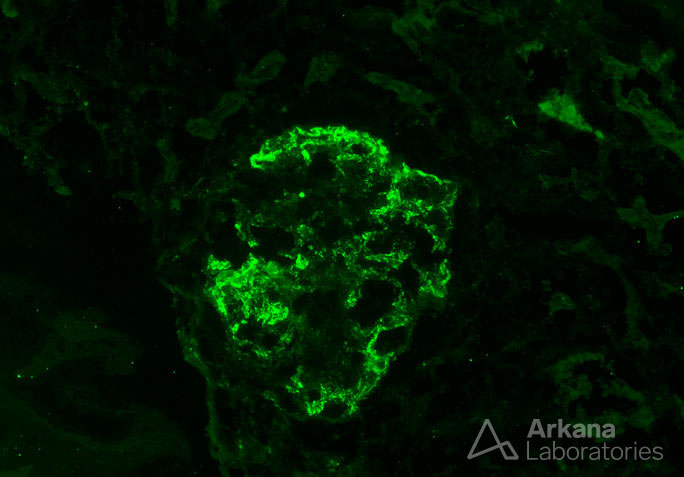

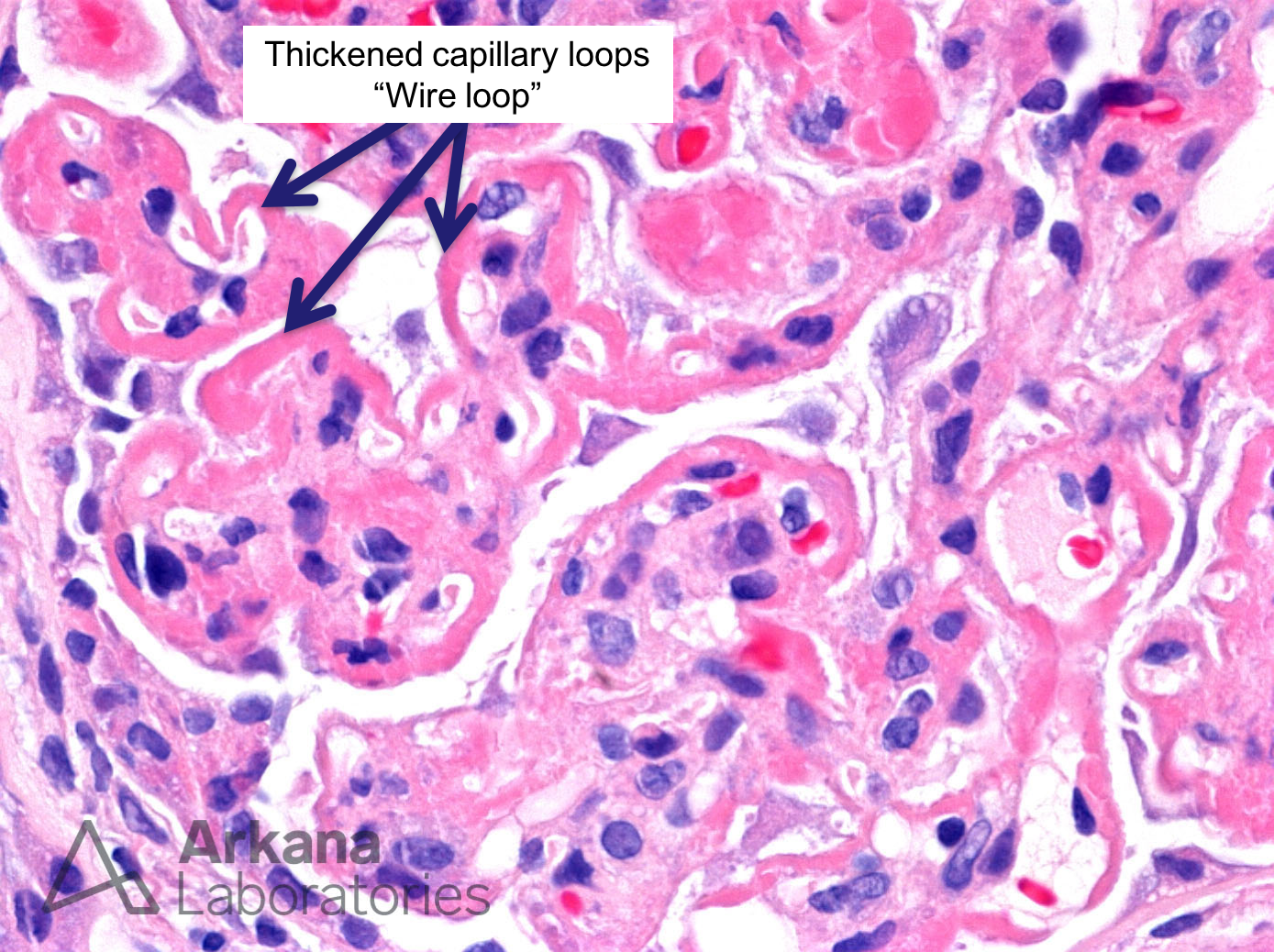

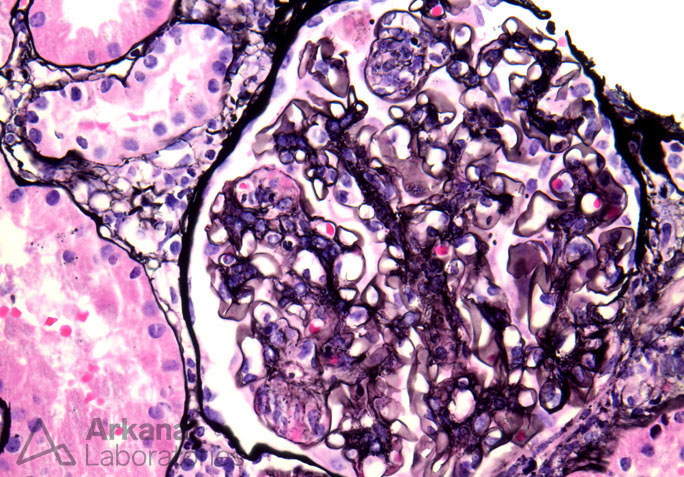

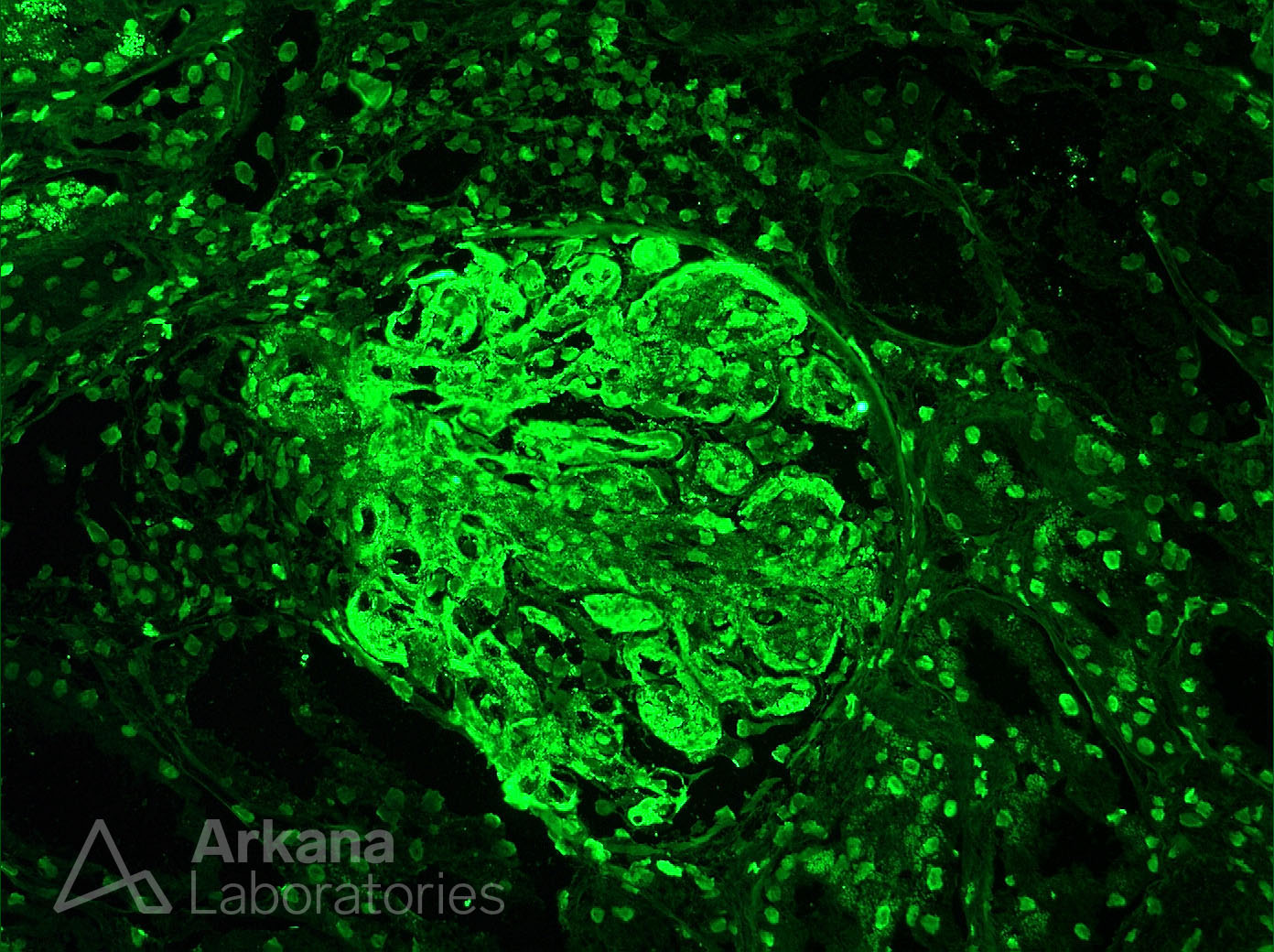

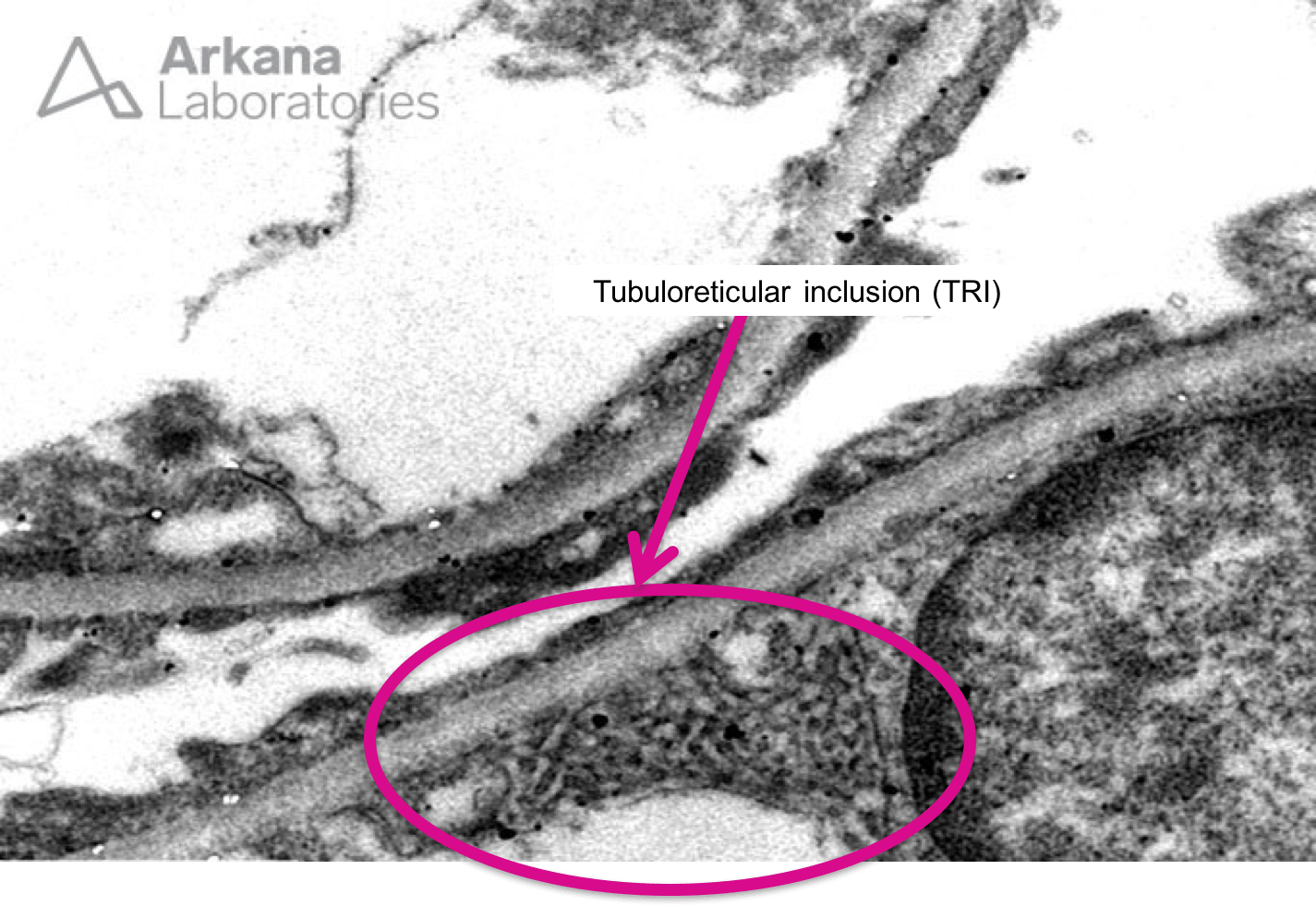

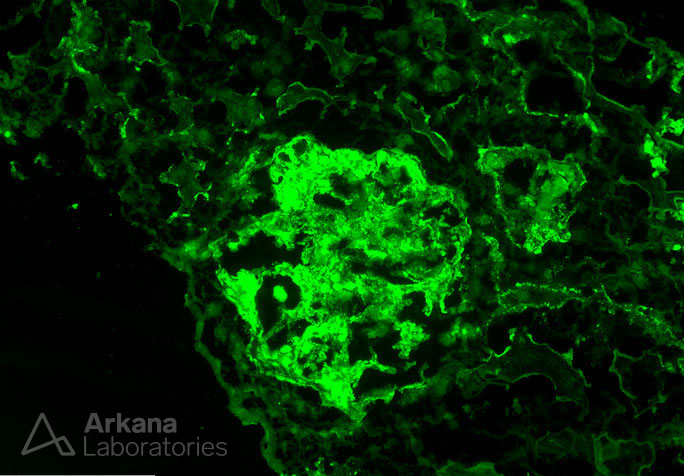

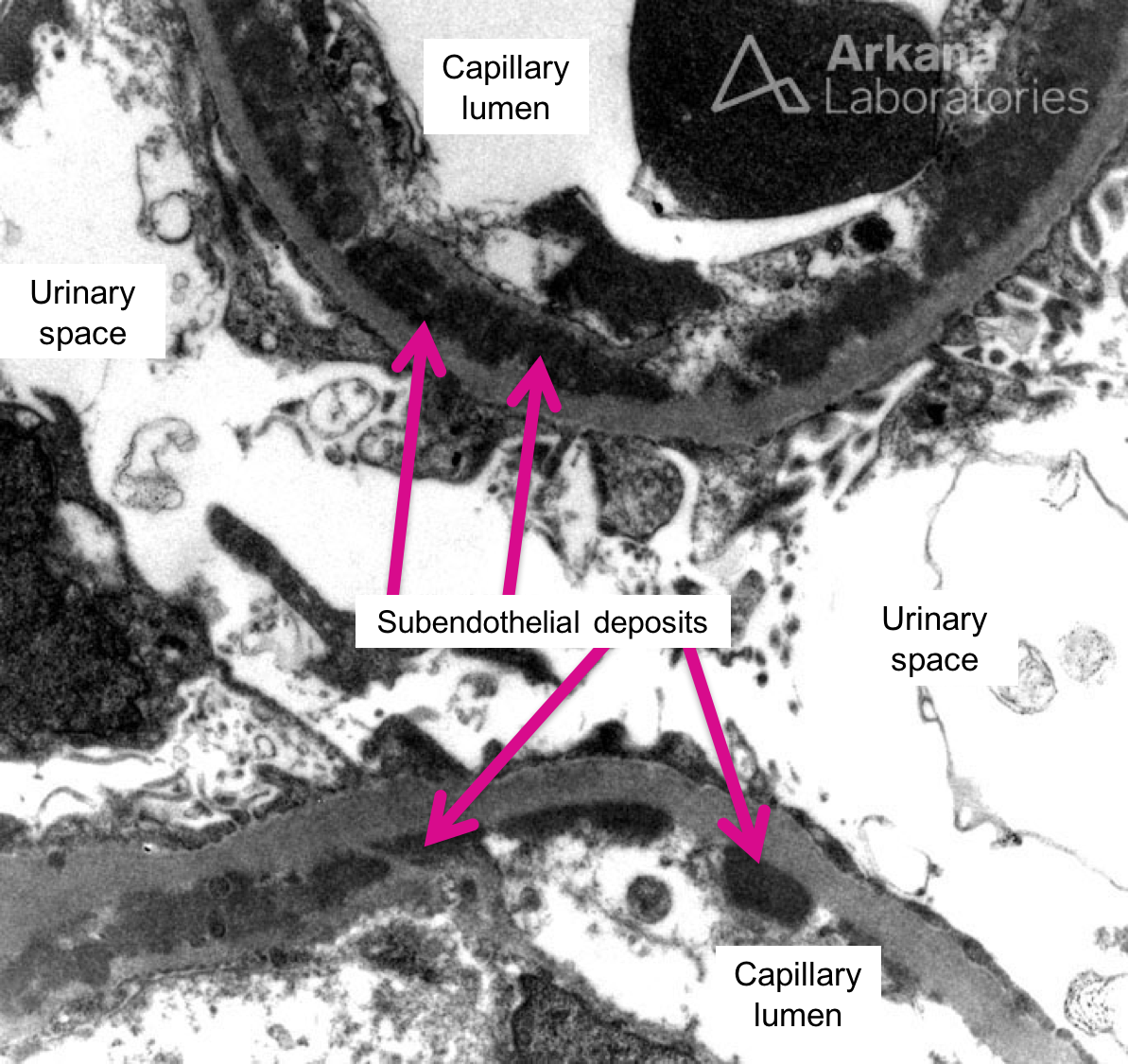

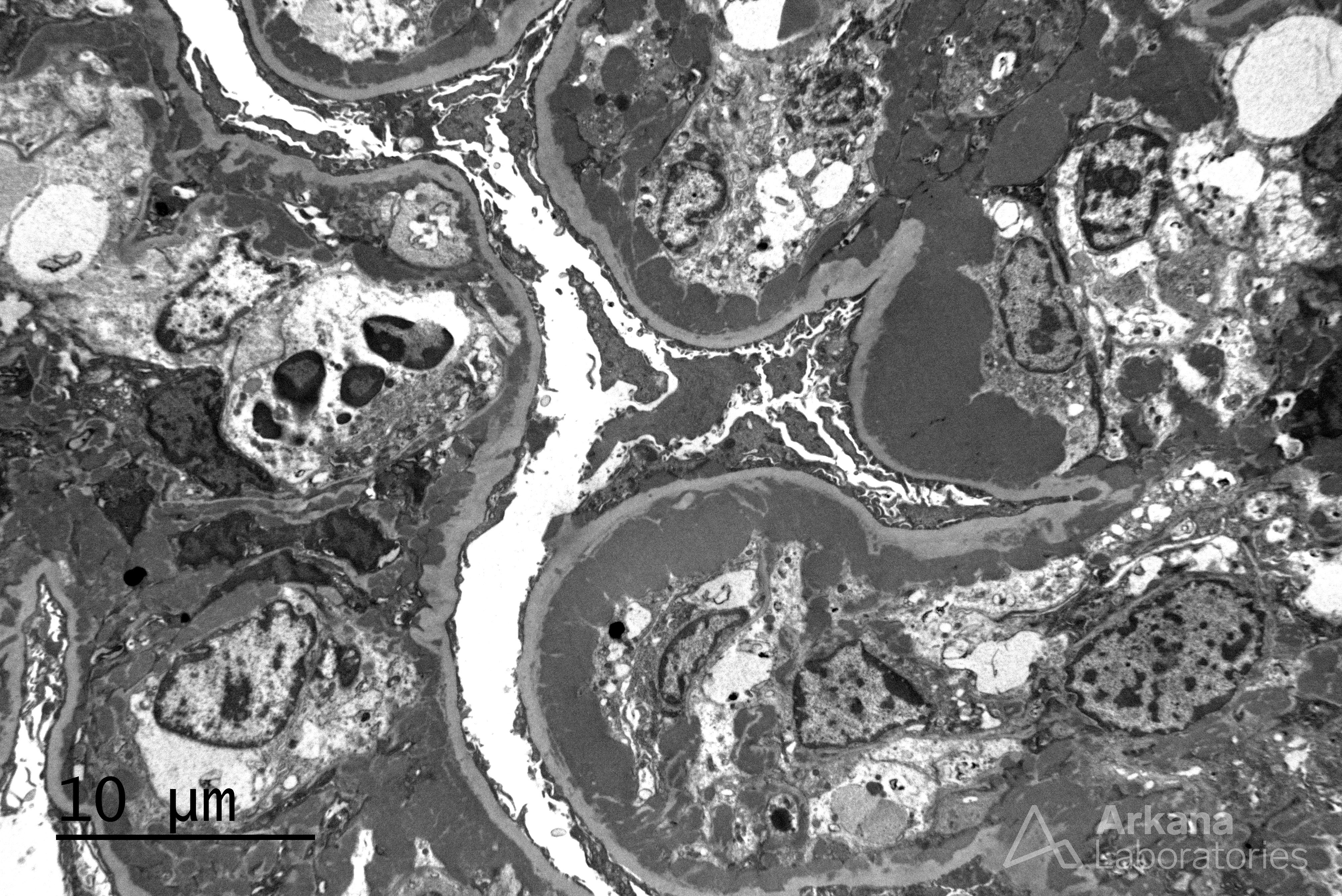

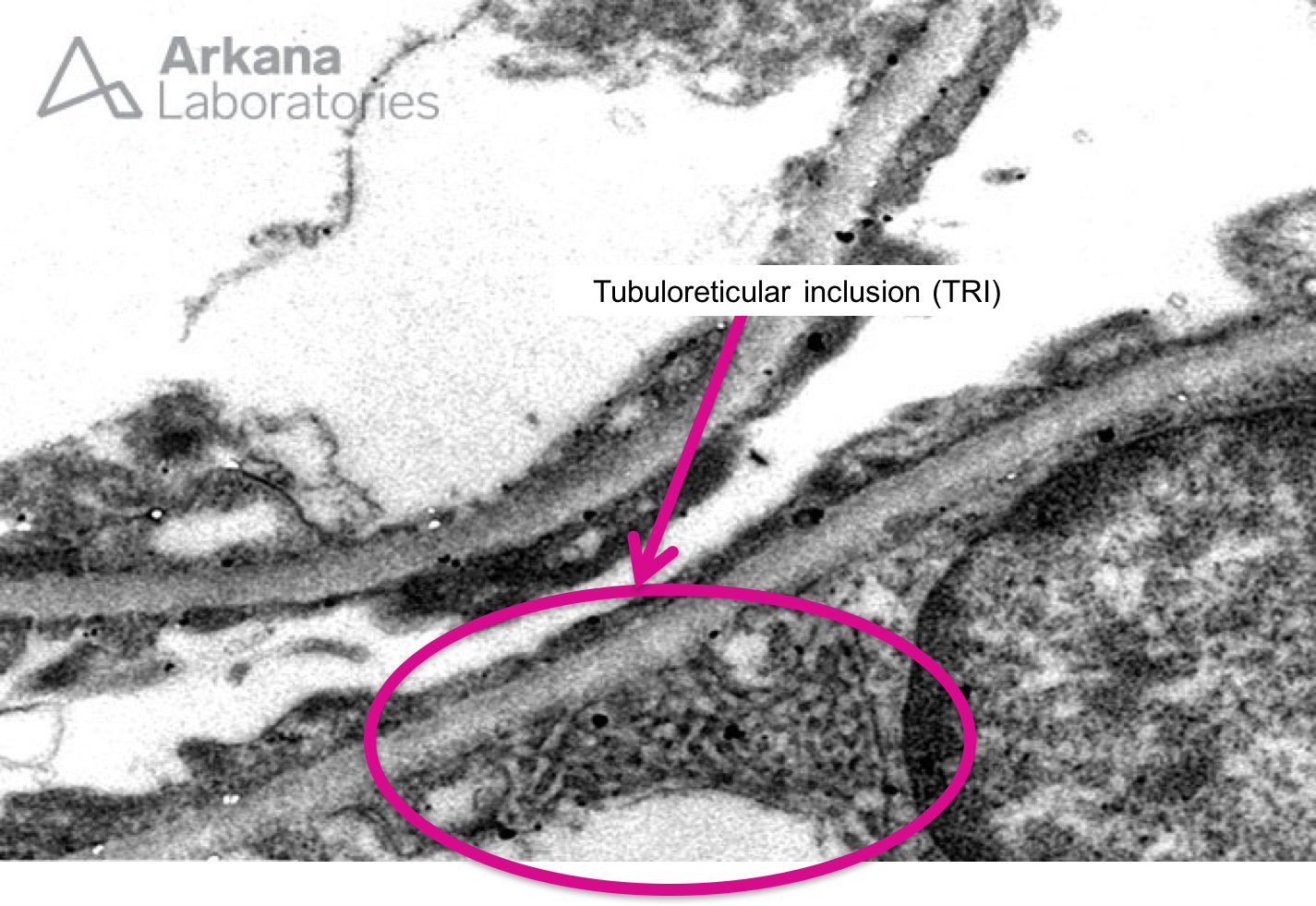

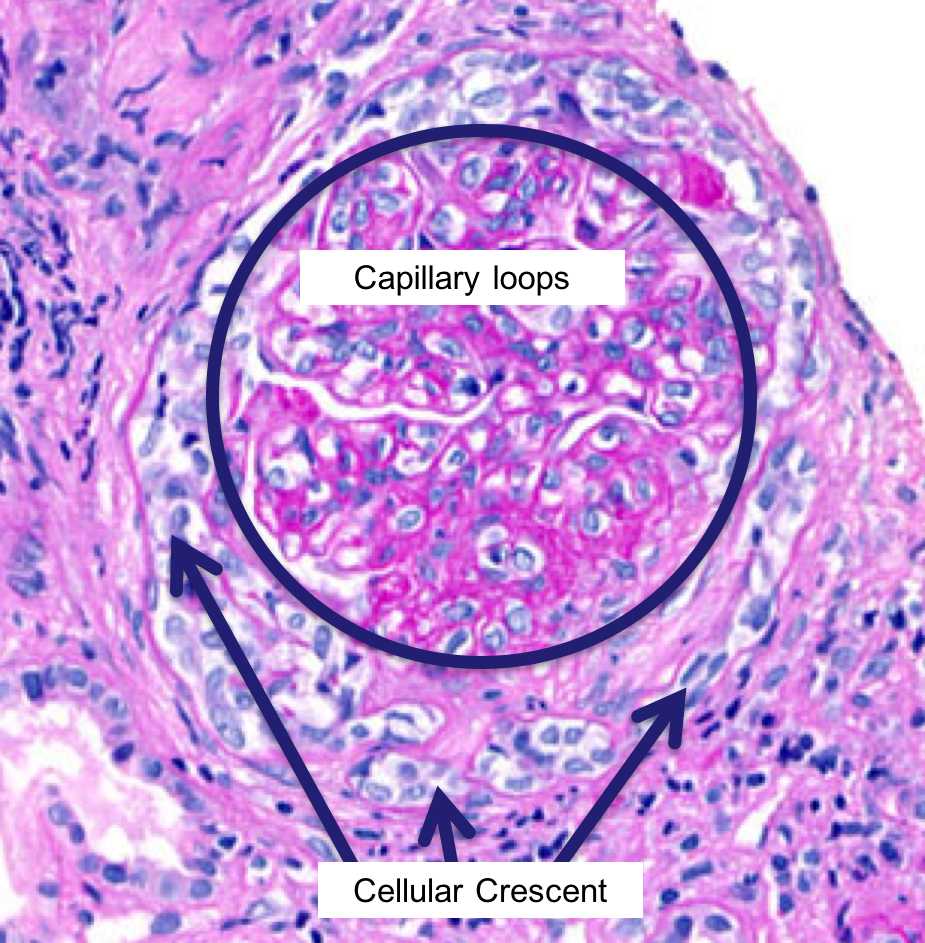

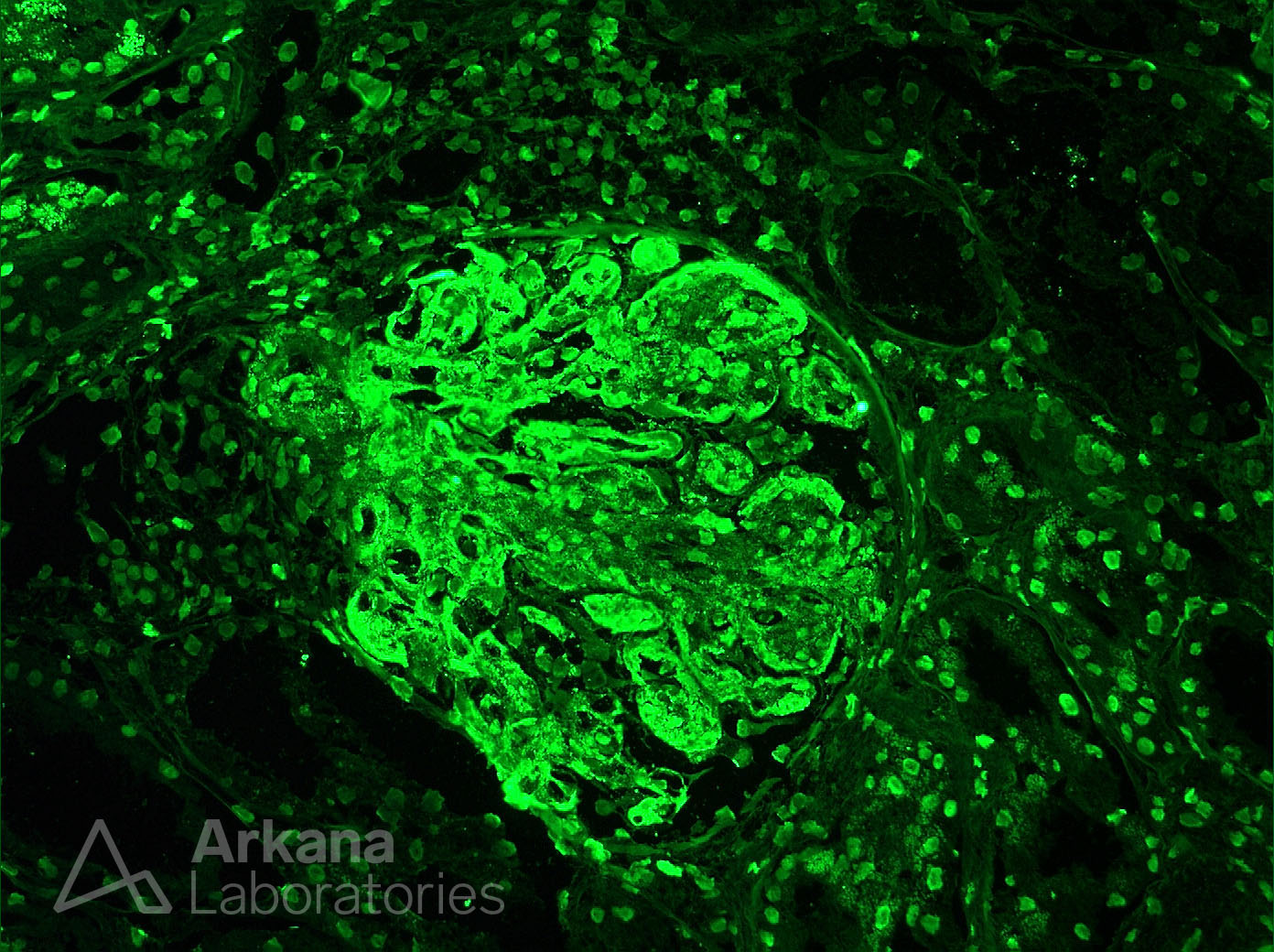

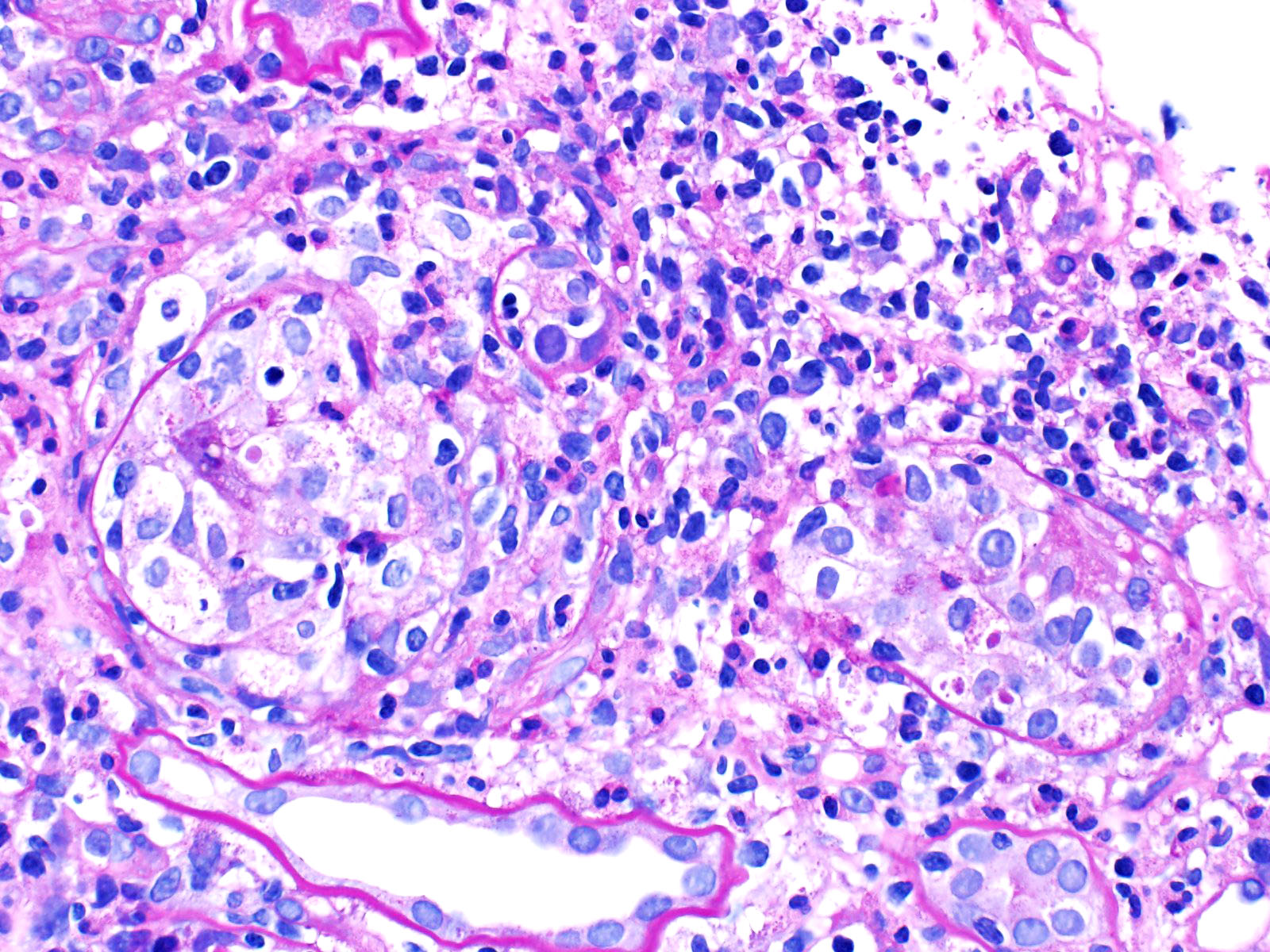

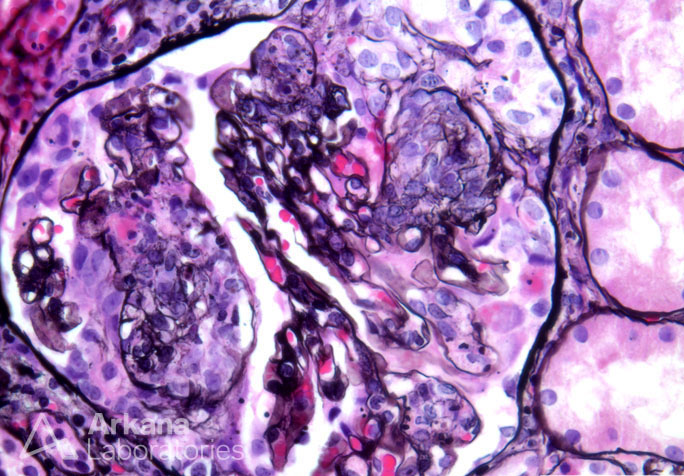

Class IV Lupus Nephritis

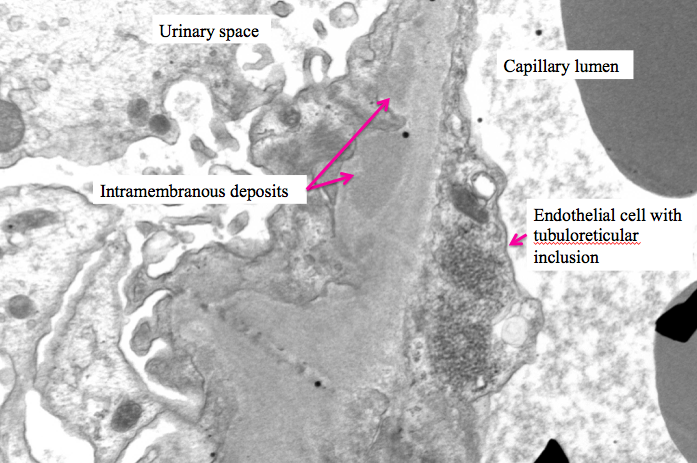

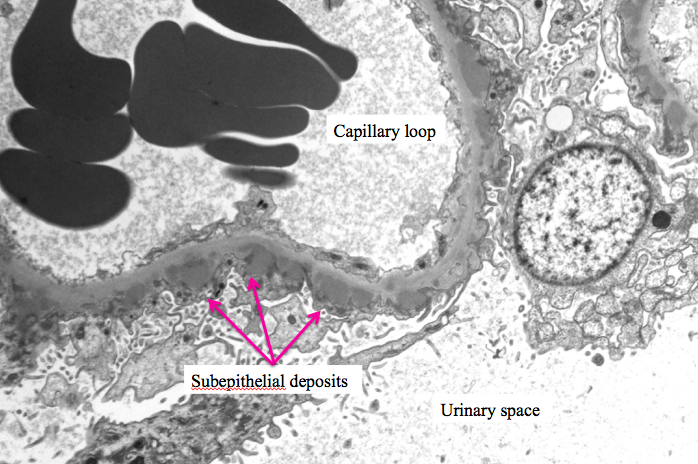

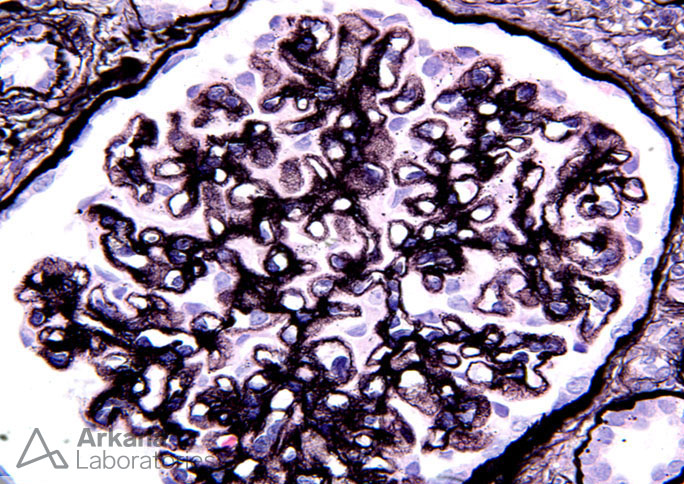

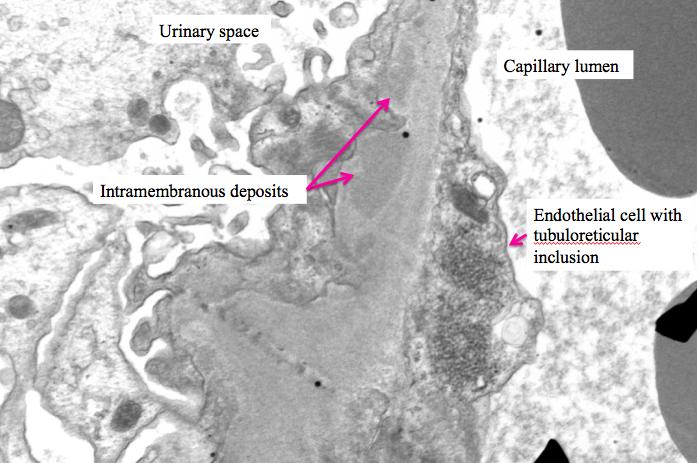

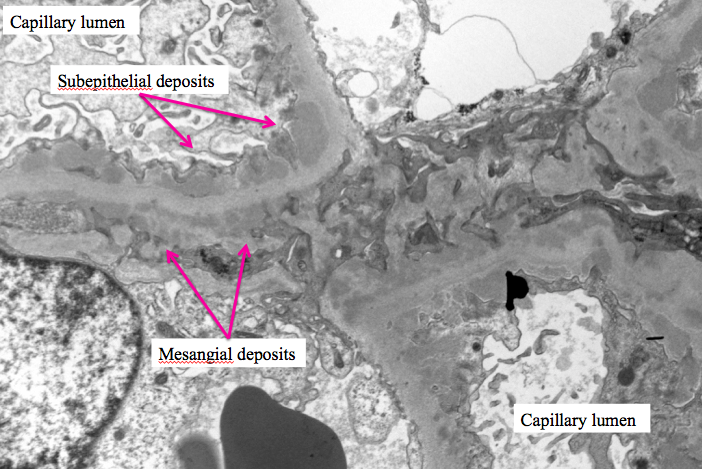

Lupus Membranous Nephropathy, Class V

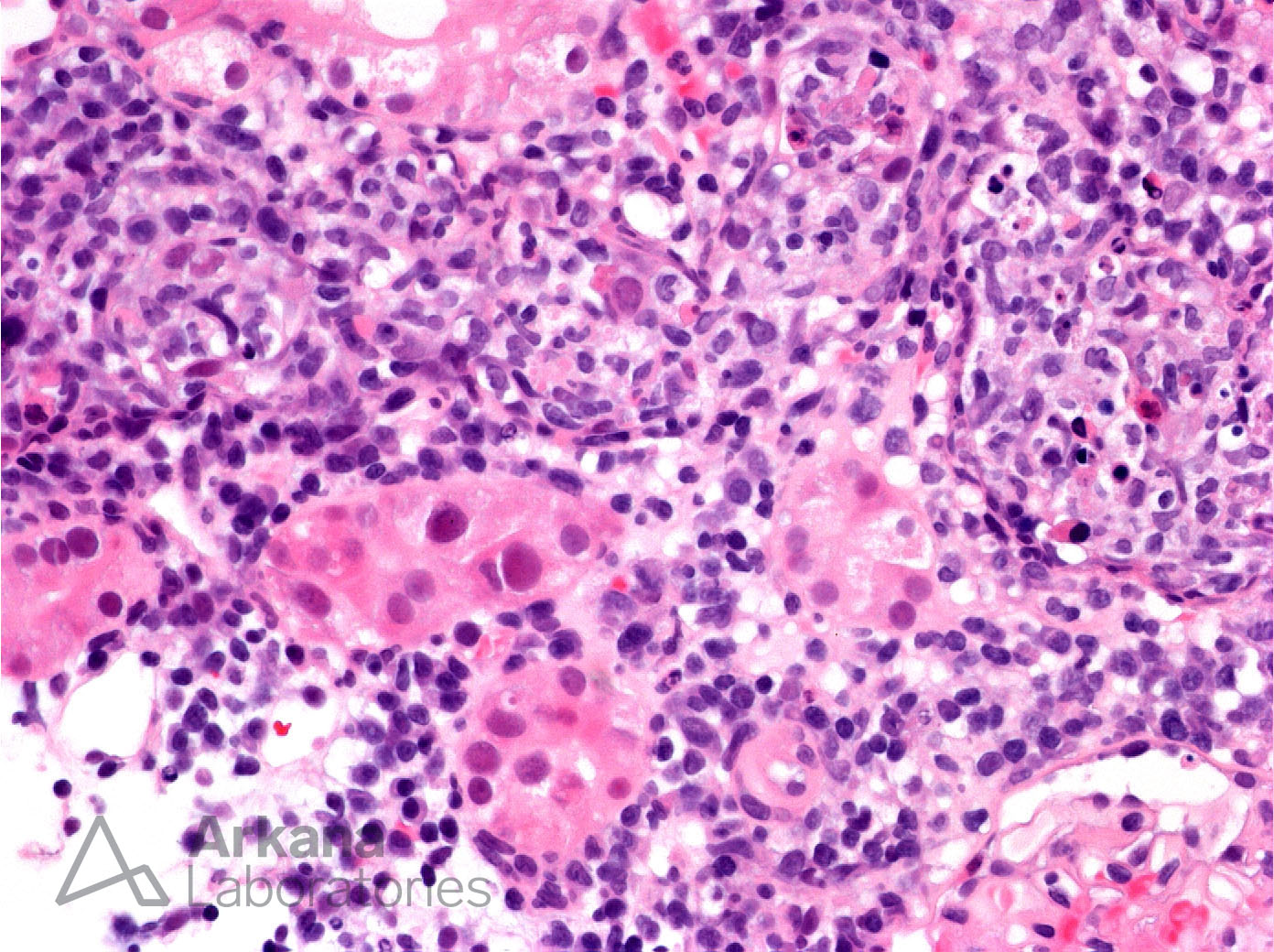

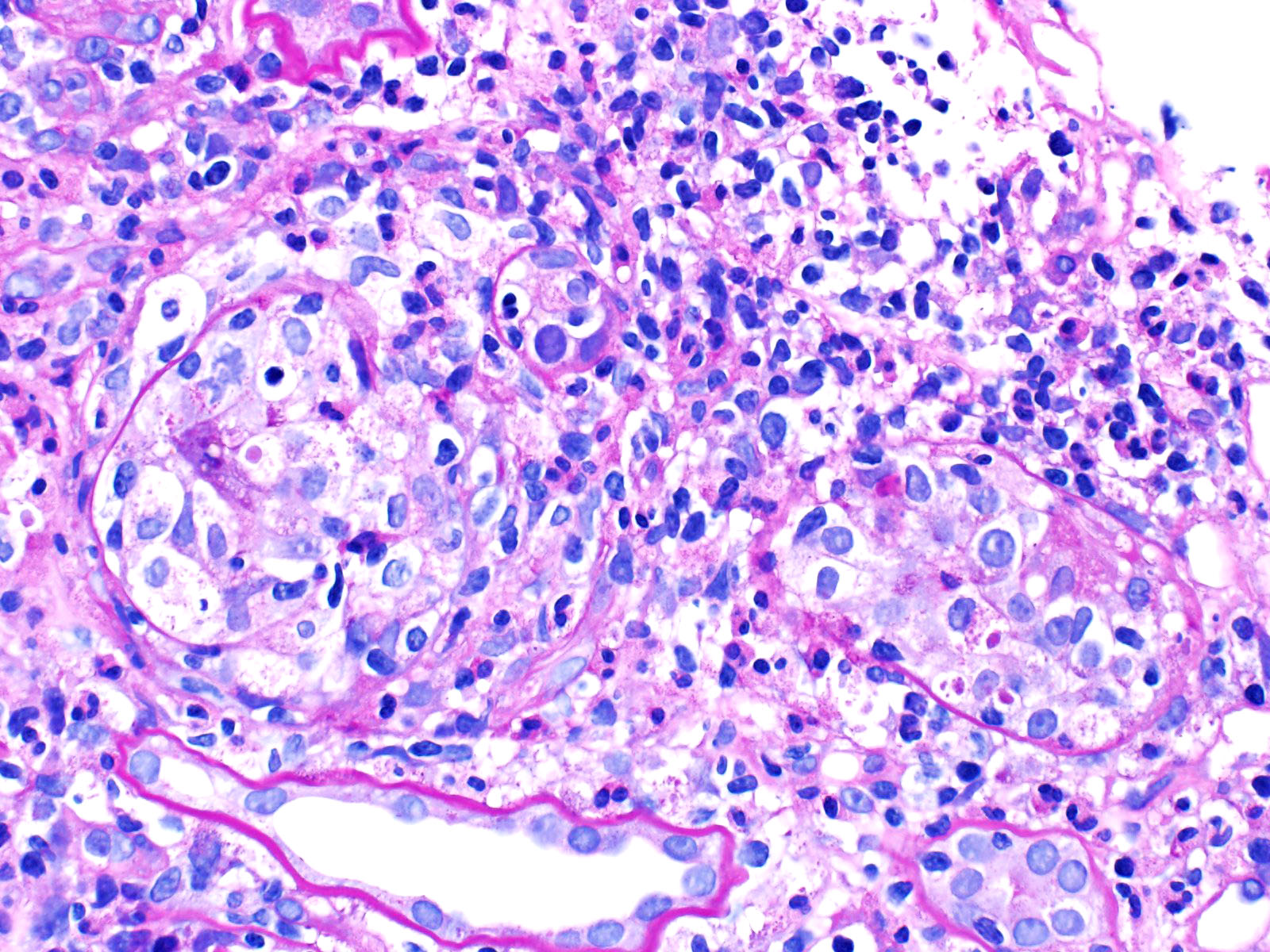

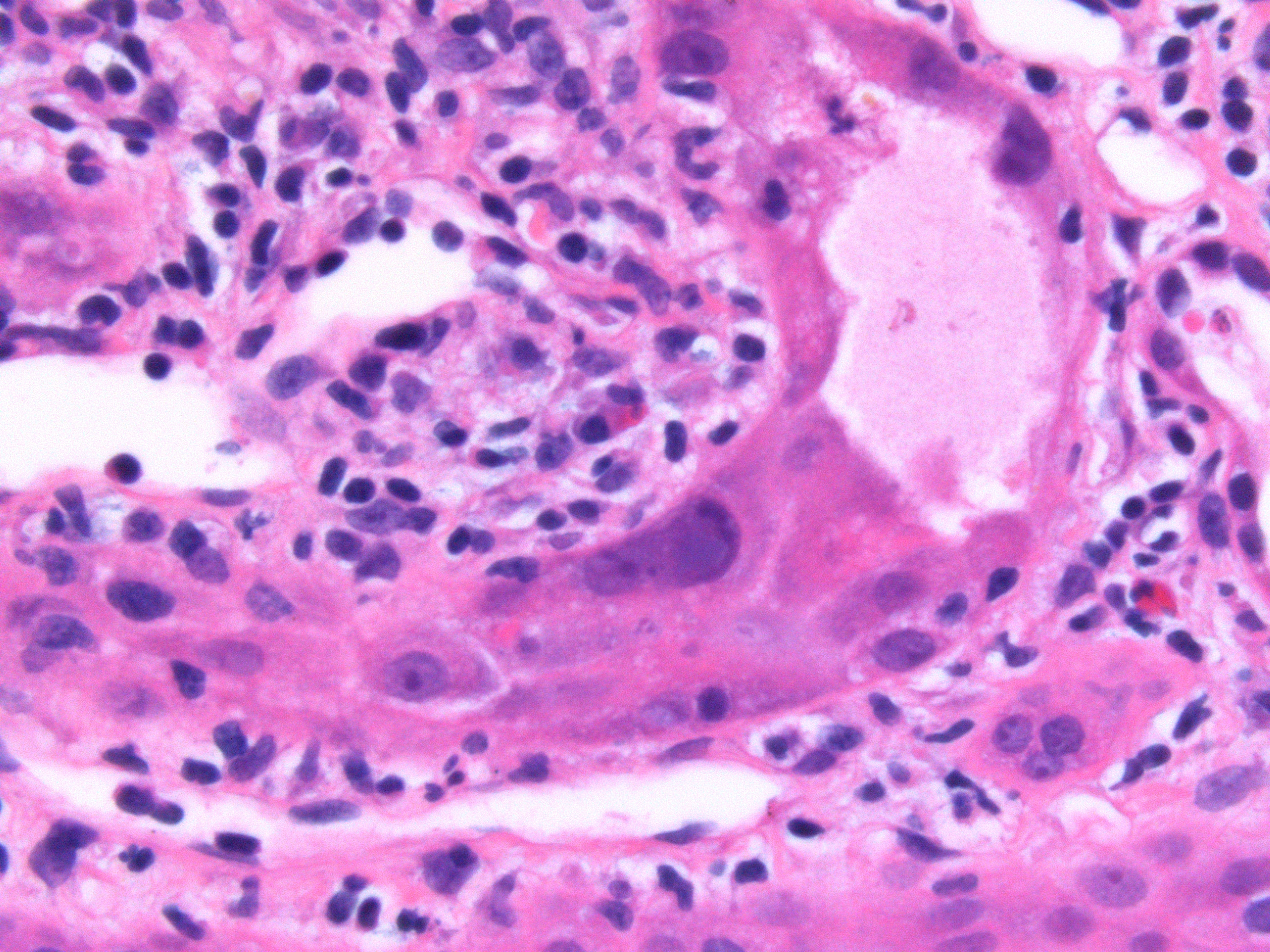

Kidney Allograft Adenovirus Nephropathy

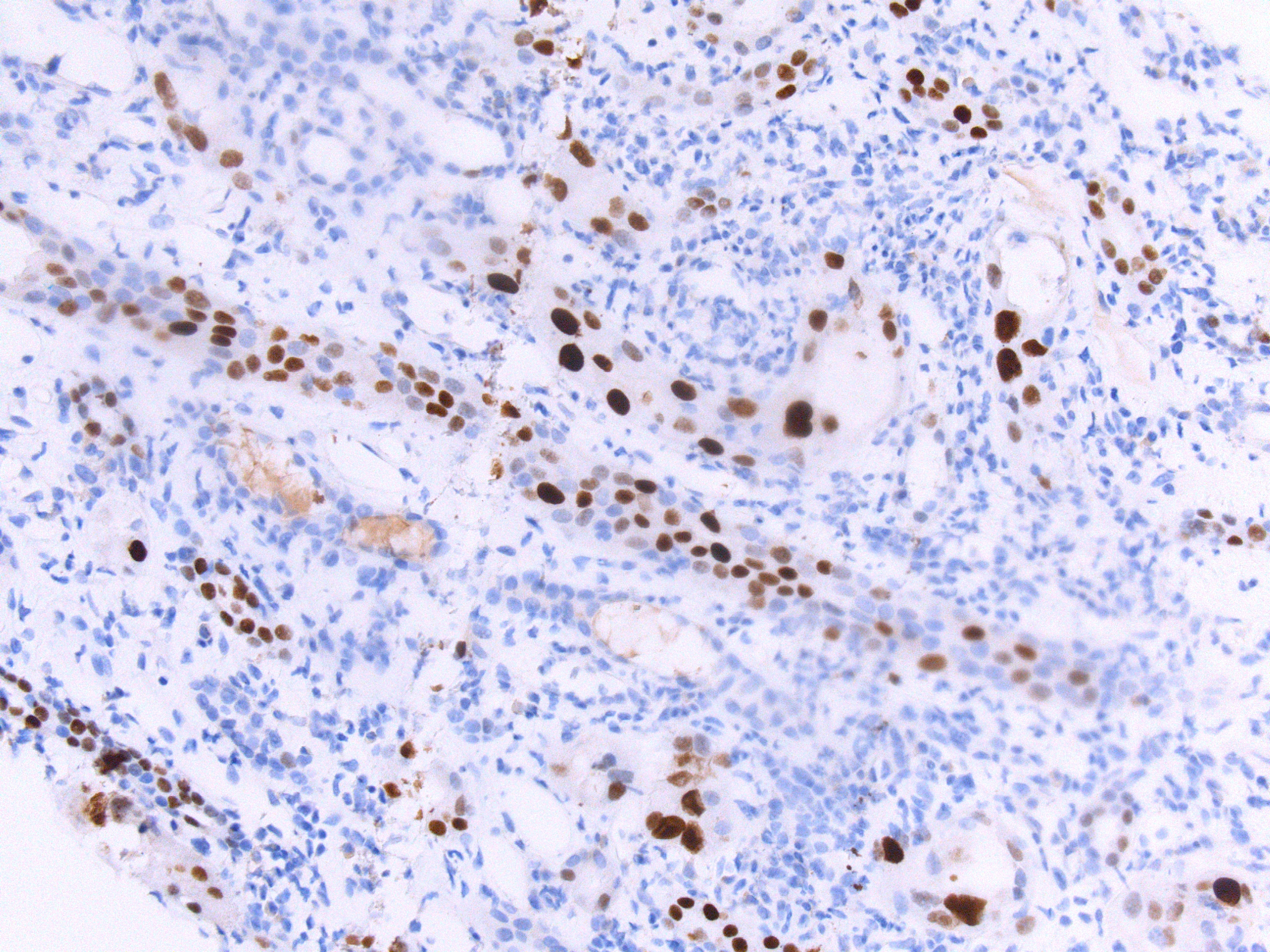

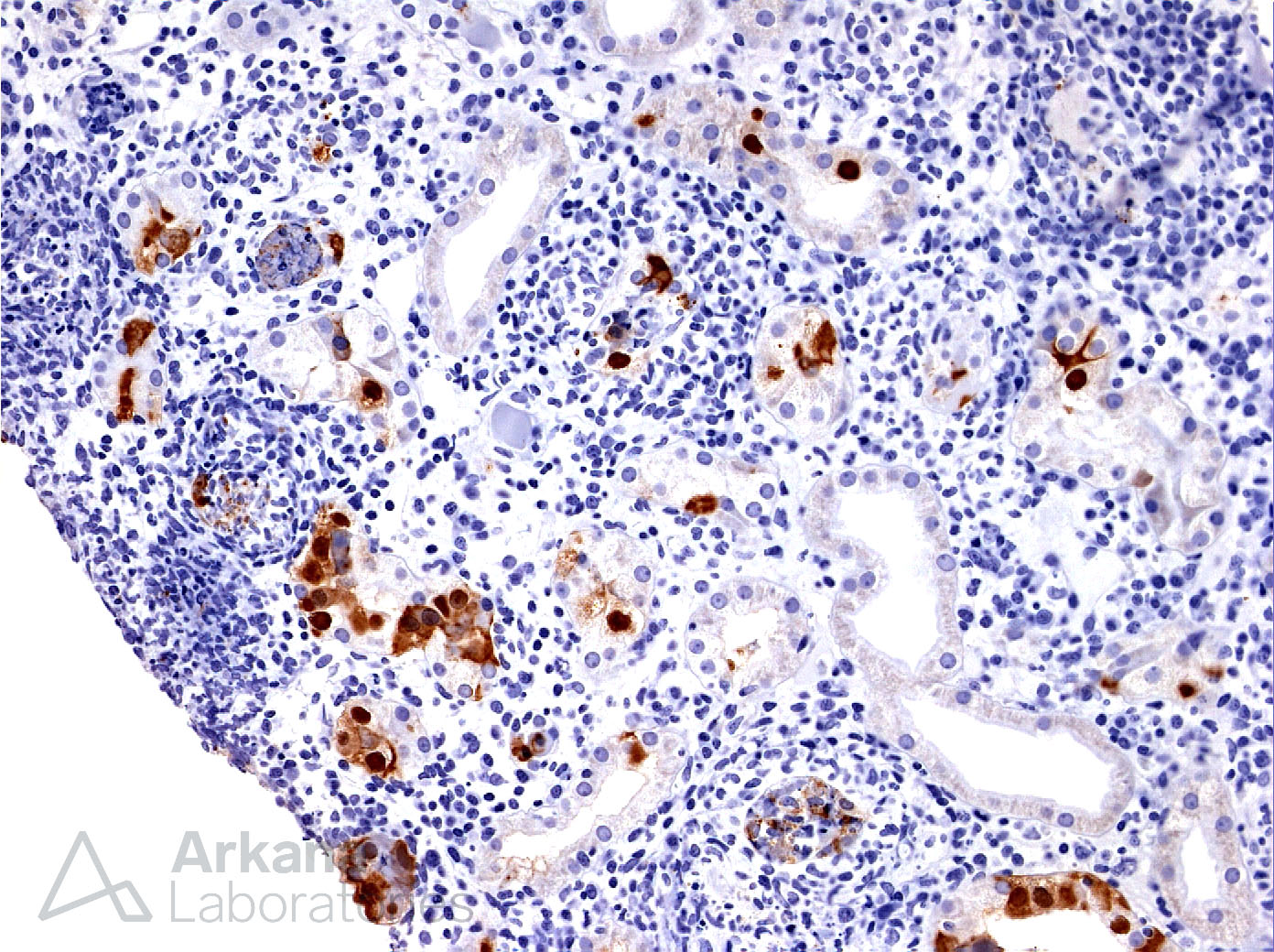

Kidney Allograft BK Virus Nephropathy

KIDNEY/BLADDER IMAGING

Normal Kidney2 — Normal Kidney (ultrasound, sagittal view)

Kidney1 — Normal Kidney (ultrasound, sagittal view)

Echogenic Kidney1.png — Echogenic Kidney (ultrasound, sagittal view)

Kidney3 — Hydronephrosis (Kidney ultrasound, sagittal view)

Hydronephrosis (Ultrasound, kidney transplant, sagittal view)

Bilateral hydronephrosis, Computed Tomography (CT)

PKD US — Polycystic Kidneys (Ultrasound, sagittal view)

PKD CT — Polycystic kidneys (Computed Tomography (CT))

Bladder1 — Bladder (moderate wall thickening) with Urine

DIALYSIS ACCESS IMAGING

Outflow Stenosis (visualized during fistulagram)

Relief of Outflow Stenosis (after fistulaplasty)

Arteriovenous Graft (AVG) with Venous Anastomosis Stenosis & Intra-Graft Stenosis

In-Stent Stenosis of Cephalic Vein Arch

LUNG ULTRASOUND

B-Lines (ref)

Blines
